Germany Standard Automotive Cable
FLRYB11Y
Application
This PVCinsulated ,PURsheathedlow tension multi-cores cable is used forautomobiles; it has excellent abrasion resistance and better resistance to bending fatigue.

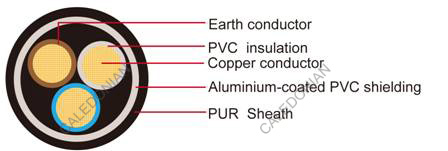

Construction:
Conductor:Cu-ETP1 bare according to DIN EN 13602
Insulation:PVC
Cover for the earth conductor:Conductive PVC.
Shielding:Aluminium-coated PVC foil.
Sheath:polyurethane (PUR)
Standard Compliance:ISO 6722 Class B
Technical Parameters:
Operating temperature:–40 °C to +105 °C
| Conductor | Insulation | Cable | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Nominal cross- section | No. and Dia. of Wires | Diameter Max. | Electrical resistance at 20℃ Max. | thickness wall Nom. | Diameter of core | Sheath thickness | Overall Diameter (min.) | Overall Diameter (max..) | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | mm | Kg/km |
| 1 x 0.35+(0.35) | 7 /0.26 | 0.80 | 52.00 | 0.25 | 1.25 | 0.60 | 3.90 | 4.30 | 21 |
| 2 x0.35+(0.35) | 7/0.26 | 0.80 | 52.00 | 0.25 | 1.25 | 0.60 | 4.10 | 4.50 | 24 |
| 3 x0.35+(0.35) | 7/0.26 | 0.80 | 52.00 | 0.25 | 1.25 | 0.60 | 4.40 | 4.80 | 30 |
| 4 x0.35+(0.35) | 7 /0.26 | 0.80 | 52.00 | 0.25 | 1.25 | 0.60 | 4.80 | 5.20 | 39 |
| 5 x0.35+(0.35) | 7 /0.26 | 0.80 | 52.00 | 0.25 | 1.25 | 0.60 | 5.40 | 5.80 | 46 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
