Japanese Standard Automotive Cable
FLR9YBC31Y

Application

This PP insulated, TPES sheathed screened cable is used for car communication cable.

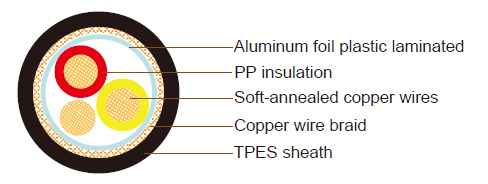

Construction:

Conductor: Electrolyte copper Cu-ETP1 according to DIN EN 13602 bare or tinned
Insulation: PP
Shielding: Aluminum foil plastic laminated, and copper wire braid, The coverage of approximately 60% is
reflected in very efficient shield attenuation.
Sheath: TPES
Standard Compliance: ISO6722 & ISO14572 Type C

Technical Parameters:

Operating temperature: –40 °C to +125 °C

　 Conductor Insulation Cable
Nominal Cross- section No. and Dia. of Wires Diameter max. Thickness Wall nom. Diameter of Core Sheath Thickness nom Overall Diameter min. Overall Diameter max. Weight approx.
mm2 No./mm mm mm mm mm mm mm kg/km
2*0.5+0.5 16/0.2 0.94 0.3 1.6 0.5 5.4 7.4 48
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
