Germany Standard Automotive Cable
Single-core cable
FLR9Y-A

Application:

This PP insulated single-core cable is used for cable harnesses, Halogen-free.

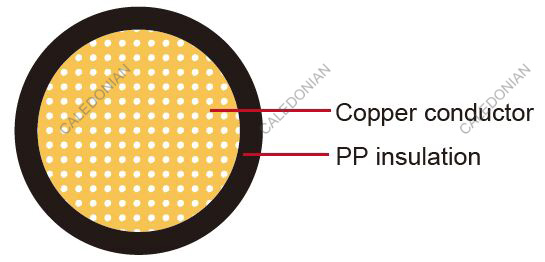

Cable Construction:

FLR9Y-A Germany Standard Automotive Cable

Conductor:Cu-ETP1 bare according to DIN EN 13602
Insulation:Polypropylene insulation(PP)
Standard:ISO 6722 Class C

Technical Parameters:

Operating temperature:–40°C to +125°C

  Conductor Construction Insulation Cable
Nominal cross- section No. and Dia. of Wires Diameter of Conductor max. Electrical resistance at 20°C max. Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm kg/km
1x0.22 7/0.21 0.70 86.5 0.20 1.10 1.20 3.1
1x0.35 7/0.26 0.70 55.5 0.20 1.20 1.30 4.5
1x0.50 19/0.19 1.00 38.2 0.22 1.40 1.60 6.6
1x0.75 19/0.23 1.20 25.4 0.24 1.70 1.90 9.0
1x1.00 19/0.26 1.35 19.1 0.24 1.90 2.10 11
1x1.50 19/0.32 1.70 13.0 0.24 2.20 2.40 16
1x2.50 19/0.41 2.20 7.82 0.28 2.70 3.00 26
1x4.00 37/0.38 2.70 4.92 0.32 3.40 3.70 42
1x6.00 37/0.45 3.40 3.23 0.32 4.00 4.30 61

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
