Germany Standard Automotive Cable
Single-core cable
FLR51Y-A

Application:

This PFA insulated automotive cable is used for cable harnesses.

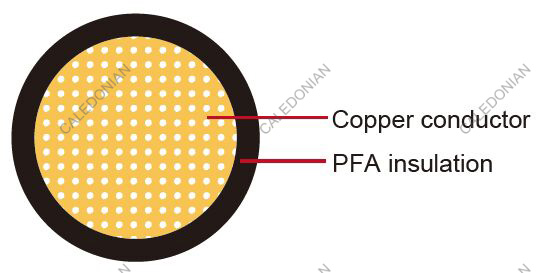

Cable Construction:

FLR51Y-A Germany Standard Automotive Cable

Conductor:Plain, Tinned, Silver or Nickel plated copper
Insulation:PFA
Standard:ISO 6722 Class H

Technical Parameters:

Operating temperature: –40°C to +250°C

  Conductor Construction Insulation Cable
Nominal cross- section No. and Dia. of Wires Diameter of Conductor max. Electrical resistance at 20°C max. Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm kg/km
1x0.13 7/0.16 0.50 142 0.20 1.0 1.10 2.4
1x0.14 7/0.16 0.50 142 0.20 1.05 1.10 2.4
1x0.22 7/0.21 0.70 87.9 0.20 1.1 1.20 3.1
1x0.35 7/0.26 0.70 55.5 0.20 1.25 1.30 4.5
1x0.50 19/0.19 1.00 38.2 0.22 1.5 1.60 6.6
1x0.75 19/0.23 1.20 25.4 0.24 1.75 1.90 9.0
1x1.00 19/0.26 1.35 19.1 0.24 1.9 2.10 11
1x1.50 19/0.32 1.70 13.0 0.24 2.2 2.40 16
1x2.50 19/0.41 2.20 7.82 0.28 2.75 3.00 26

Note: Other configurations, sizes, colors and length not specified herein are available upon reques
