Germany Standard Automotive Cable
Single-core cable
FLR14Y

Application:

This PFA insulated automotive cable is used for cable harnesses,cable with excellent resistance against chemicals,can be used as an alternative to PTFE.

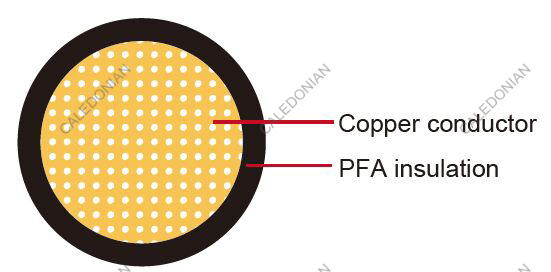

Cable Construction:

FLR14Y Germany Standard Automotive Cable

Conductor:Sliver or Nickel plated copper
Insulation:PFA
Standard:ISO 6722 Class H

Technical Parameters:

Operating temperature: –80°C to +260°C

  Conductor Construction Insulation Cable
Nominal cross- section No. and Dia. of Wires Diameter of Conductor max. Electrical resistance at 20°C max. Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm kg/km
1x0.5 19/0.19 1.00 38.2 0.22 1.4 1.60 7
1x0.75 19/0.22 1.20 25.4 0.24 1.7 1.90 10
1x1 19/0.25 1.35 19.1 0.24 1.9 2.10 12
1x1.5 19/0.32 1.70 13 0.24 2.2 2.40 17
1x2.5 19/0.40 2.20 7.8 0.28 2.7 3.00 28
1x4 56/0.30 2.70 4.8 0.32 3.4 3.70 45

Note: Other configurations, sizes, colors and length not specified herein are available upon reques
