FLALRY Germany Standard Automotive Cable Single-core

Application and Description:

This PVC insulated automotive cable is designed for telecommunication overhead contract line and electronics.

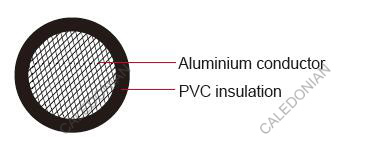

Cable Construction:

FLALRY Germany Standard Automotive Cable

Conductor:
Aluminium 99.7%≥1.25 mm2
Aluminium alloy < 1.25 mm2
Insulation:PVC
Standard:ISO 6722 Class B

Special properties:

Cables with cross-sections > 10 mm2 can be used as battery cables
Considerable weight savings compared to copper

Technical Parameters:

Operating temperature: –40°C to +105°C

  Conductor Construction Insulation Cable
Nominal cross- section No. and Dia. of Wires Diameter of Conductor max. Electrical resistance at 20°C max. Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm kg/km
1x0.75 11/0.3 1.3 43.6 0.24 1.7 1.9 4
1x1.00 16/0.29 1.5 32.7 0.24 1.9 2.1 5
1x1.25 16/0.32 1.7 24.8 0.24 2.1 2.3 6
1x1.50 16/0.35 1.8 21.2 0.24 2.2 2.4 7
1x2.0 15/0.42 2.0 15.7 0.28 2.5 2.8 9
1x2.5 19/0.43 2.2 12.7 0.28 2.7 3.0 12
1x3.0 23/0.42 2.4 10.2 0.32 3.1 3.4 14
1x4.0 30/0.42 2.8 7.85 0.32 3.4 3.7 17
1x5.0 36/0.42 3.1 6.57 0.32 3.9 4.2 19
1x6.0 45/0.42 3.4 5.23 0.32 4.0 4.3 23
1x8.0 59/0.42 4.3 3.97 0.32 4.6 5.0 29
1x10.0 50/0.52 4.5 3.03 0.48 5.3 6.0 43
1x12.0 60/0.52 5.4 2.53 0.48 5.8 6.5 50
1x16.0 78/0.52 5.8 1.93 0.52 6.4 7.2 63

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
