FL4G11Y Germany Standard Automotive Cable
Application
This EVA insulated ,PURsheathed multi-cores cable is used for ABS braking systems, wiring inside the engine compartment.

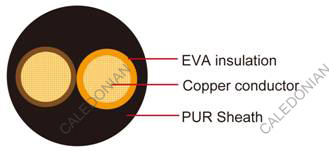

Construction:
Conductor:cu-ETP1 tinned according to DIN EN 13602
Insulation:Ethylene vinyl acetate (EVA)
Sheath:Polyurethane(PUR)
Sheath colour: Black
Standard Compliance:ISO 6722 Class C
Special Properties:
Good flexibility and Good reversed bending strength. Conductors with 3 and 4 cores for additional functions. Also suitable for wiring inside the engine compartment
Technical Parameters:
Operating temperature:–40 °C to +125 °C
| Conductor | Insulation | Cable | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Nominal cross- section | No. and Dia. of Wires | Diameter Max. | Electrical resistance at 20℃ Max. | thickness Wall Nom. | Diameter of core | Sheath thickness | Overall Diameter (min.) | Overall Diameter (max..) | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | mm | Kg/km |
| 2x0.50 | 16/0.21 | 1.00 | 40.10 | 0.60 | 2.20 | 0.85 | 5.90 | 6.30 | 44 |
| 2x0.75 | 40/0.16 | 1.10 | 27.10 | 0.50 | 2.20 | 0.90 | 5.90 | 6.45 | 49 |
| 2x1.50 | 30/0.26 | 1.70 | 13.70 | 0.60 | 2.80 | 0.65 | 6.60 | 7.00 | 66 |
| 3x0.50 | 16/0.21 | 1.00 | 40.10 | 0.60 | 2.20 | 0.80 | 6.00 | 6.40 | 51 |
| 3x1.50 | 30/0.26 | 1.70 | 13.70 | 0.70 | 2.90 | 1.10 | 8.10 | 8.70 | 107 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
