CAVUS Japanese Standard Automotive Cable

Application

This PVC insulated single-core cable is used for automotive wiring.

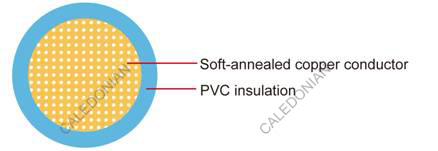

Construction:

Conductor:Cu-ETP1 according to JIS C 3102
Insulation:PVC
Standard Compliance:JASO D 611-94

Technical Parameters:

Operating temperature:–40 °C to +80 °C

  Conductor Insulation Cable
Nominal cross- section NO. and Dia. of Wires Diameter Max. Electrical resistance at 20℃ Max. thickness wall Nom. Overall Diameter min. Overall Diameter max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm Kg/km
1 x0.30 7/0.26 0.70 50.20 0.20 1.10 1.20 4
1 x0.50 7/0.32 0.90 32.70 0.20 1.30 1.40 6
1 x0.85 11/0.32 1.10 20.80 0.20 1.50 1.60 9
1 x1.25 16/0.32 1.40 14.30 0.20 1.80 1.90 13

Note: Other configurations, sizes, colors and length not specified herein are available upon request
