AV-V Japanese Standard Automotive Cable

Application

This PVC insulated single-core cable is used in low voltage circuits in automobiles(Battery Cables).

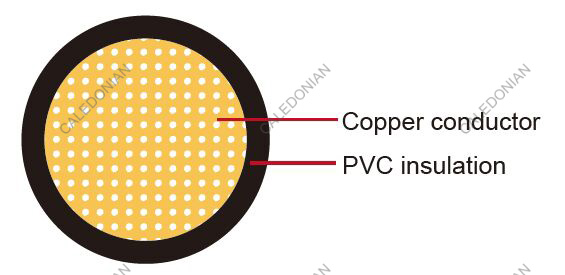

Construction:

Conductor: Annealed staranded copper
Insulation: Lead free PVC
Standard Compliance: HMC ES 91110-05

Technical Parameters:

Operating temperature: –40 °C to +80 °C
Rated temperature: 80 °C
Rated voltage up to 60V

　 Conductor Insulation Cable
Nominal Cross- section No. and Dia. of Wires Diameter max. Electrical Resistance at 20°C max. Thickness Wall nom. Overall Diameter min. Overall Diameter max. Weight Approx.
mm2 no./mm mm mΩ/m mm mm mm kg/km
1x5 63/0.32 3.1 3.58 0.8 4.7 5.0 6.5
1x8 105/0.32 4.1 2.14 1.0 6.1 6.4 6.0
1x10 114/0.32 4.2 1.96 1.0 6.2 6.5 8.5
1x15 171/0.32 5.3 1.32 1.0 7.3 7.8 8.0
1x20 247/0.32 6.3 0.92 1.0 8.3 8.8 11
1x30 361/0.32 7.8 0.63 1.0 9.8 10.3 12
1x50 608/0.32 10.1 0.37 1.0 12.1 12.8 16.5
1x60 741/0.32 11.1 0.31 1.4 13.9 14.6 16
1x85 1064/0.32 13.1 0.21 1.4 15.9 16.6 24.5
1x100 369/0.32 15.1 0.17 1.4 17.9 18.8 23.5

*Note: Other configurations, sizes, colors and length not specified herein areavailable upon request.
