AHFX-BS Japanese Standard Automotive Cable
Application
This Fluororubber insulated single-core cable is used for HEV automobiles.

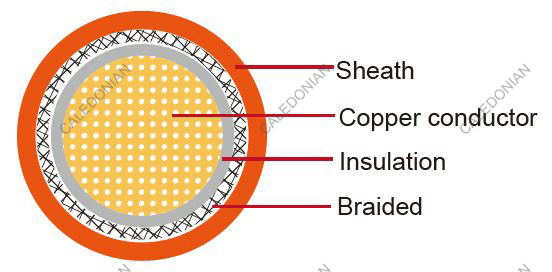

Construction:
Conductor: Tin plated copper
Insulation: Fluororubber
Braided:Shield tin plated copper
Sheath: Halogen free Polyolefine
Standard Compliance: KIS-ES-1121
Technical Parameters:
Operating temperature: –40 °C to +200°C
Rated Voltage: 600V
| Conductor | Insulation | Cable | ||||||
|---|---|---|---|---|---|---|---|---|
| Nominal Cross- section | No. and Dia. of Wires | Diameter max. | Electrical Resistance at 20°C max. | Thickness Wall max. | Thickness Wall min. | Shield Rate | Overall Diameter max. | Overall Diameter min. |
| mm2 | no./mm | mm | mΩ/m | mm | mm | mm | mm | mm |
| 1x3 | 65/0.26 | 2.4 | 5.65 | 4.05 | 3.55 | 90 | 5.6 | 5.3 |
| 1x5 | 65/0.32 | 3.0 | 3.72 | 4.9 | 4.3 | 90 | 7.3 | 6.5 |
| 1x8 | 154/0.26 | 4.0 | 2.43 | 5.9 | 5.3 | 90 | 8.3 | 7.5 |
| 1x15 | 171/0.32 | 5.3 | 1.44 | 7.8 | 7.2 | 90 | 10.75 | 9.85 |
| 1x20 | 247/0.32 | 6.5 | 1.00 | 9.0 | 8.4 | 90 | 11.95 | 11.05 |
| 1x25 | 323/0.32 | 7.4 | 0.76 | 10.6 | 9.8 | 90 | 13.5 | 12.5 |
| 1x30 | 361/0.32 | 7.8 | 0.68 | 11.0 | 10.2 | 90 | 13.9 | 12.9 |
| 1x40 | 494/0.32 | 9.1 | 0.52 | 12.3 | 11.5 | 90 | 16.25 | 15.15 |
| 1x50 | 608/0.32 | 10.1 | 0.42 | 13.75 | 12.85 | 90 | 17.7 | 16.5 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
