AEX/AVX Japanese Standard Automotive Cable

Application

This XLPE insulated single-core cable is used for automobiles, motorcycles and other motor vehicles.

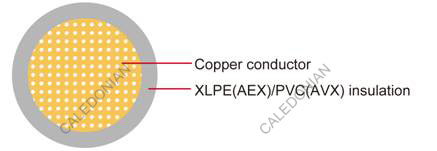

Construction:

Conductor:Cu-ETP1 according to JIS C3102
Insulation:XLPE (AEX)
Crosslinked PVC (AVX)
Standard Compliance: JASO D 608-92

Technical Parameters:

Operating temperature:–40 °C to +120 °C (AEX)
Operating temperature:–40 °C to +100 °C (AVX)

AEX/AVX
  Conductor Insulation Cable
Nominal cross- section No. and Dia. of Wires. Diameter Max. Electrical resistance at 20℃ Max. Thickness Wall Nom. Overall Diameter min. Overall Diameter max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm Kg/km
1 x0.50 7/0.32 1.00 32.70 0.50 2.00 2.20 8
1 x0.85 11/0.32 1.20 20.80 0.50 2.20 2.40 11
1 x1.25 16/0.32 1.50 14.30 0.60 2.70 2.90 16
1 x2.00 26/0.32 1.90 8.80 0.60 3.10 3.40 25
1 x3.00 41/0.32 2.40 5.60 0.70 3.80 4.10 38
1 x5.00 65/0.32 3.00 3.50 0.80 4.60 4.90 59
1 x8.00 50/0.45 3.70 2.30 0.80 5.30 5.60 86
1 x15.00 84/0.45 4.80 1.40 1.10 7.00 7.40 145
1 x0.50f 20/0.18 1.00 36.70 0.50 2.00 2.20 8
1 x0.75f 30/0.18 1.20 24.40 0.50 2.20 2.40 10
1 x 1.25f 50/0.18 1.50 14.70 0.60 2.70 2.90 16

The "f" in the nominal size column indicates a flexible conductor with a finer wire diameter.
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
