FL2XCY

FL2XCY

Applications

These cables are used as airfield lighting equipment primary cables for the series circuit connecting the Constant Current Regulators and the isolating transformers, and between the isolating transformers.

Standards

ENV 50213
IEC 60502-2

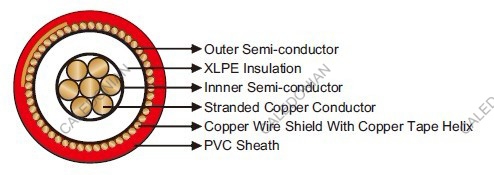

Construction

Conductor: Stranded bare copper conductor.
Inner Semi-Conductor: Extruded semi-conducting compound.
Insulation: XLPE.
Outer Semi-Conductor: Extruded semi-conducting compound.
Shield: Concentric layer of bare copper wires, counter helix of a copper tape.Sheath: PVC.

Technical Data

Rated Voltage Uo/U (Um) 6/10kV
Maximum Conductor Temperature 90℃
Short Circuit Temperature 250℃
Operating Temperatures -40℃~+90℃
Minimum Bending Radius 15×OD
Flame Retardant Yes
Impacted Resistant Yes
Weather Resistant Yes
Oil Resistant Yes

Dimensions and Weight

Construction Nominal Insulation Thickness Nominal Shield Cross Section Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
No. ×mm² mm mm² mm mm kg/km
1×6 3.5 6 1.4 15.6 420
