FAA L-824 Type C Unshielded 5kV

FAA L-824 Type C Unshielded 5kV

Applications

These cables are used for interconnecting the transformers and the current regulator of airfield lighting systems in series circuits, suitable for fixed applications such as taxiways, runways, navigational aids, and obstruction lighting, can be installed in conduit and direct burial.

Standards

FAA L-824 Type C
ICEA S-96-659/NEWA WC71

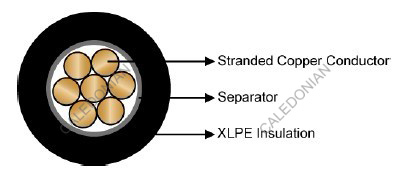

Construction

Conductor: Stranded bare copper to ASTM B3 and ASTM B8.
Separator: Semi-conductive extruded layer or semi-conductive tape.
Insulation: XLPE.

Technical Data

Rated Voltage Uo/U (Um) 5kV
Maximum Conductor Temperature 90℃
Short Circuit Temperature 250℃
Operating Temperatures -40℃~+90℃
Minimum Bending Radius 5×OD
Lead Free Yes

Dimensions and Weight

Construction No. of Strand Nominal Insulation Thickness Nominal Overall Diameter Nominal Weight
No.× AWG - mm inches mm inches kg/km lbs/kft
1×8 7/19 2.79 0.11 9.65 0.380 132 89
1×6 7/19 2.79 0.11 10.67 0.420 186 125
1×4 7/19 2.79 0.11 11.68 0.46 268 180
