C 33-224 / C33-225

FIREROL FRL-TW-05M-ESW-OS

Applications

These cables are used as airfield lighting equipment primary cables for the series circuit connecting the Constant Current Regulators and the isolating transformers, and between the isolating transformers.

Standards

C33-224
C33-225

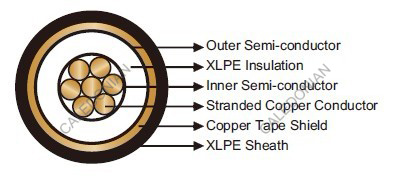

Construction

Conductor: Stranded bare or tinned copper conductor.
Inner Semi-Conductor: Extruded semi-conducting compound.
Insulation: XLPE. EPDM can be offered upon request.
Outer Semi-Conductor: Extruded semi-conducting compound.
Shield: Copper tape shield. Copper wire shield can be offered upon request.
Sheath: XLPE. PVC/HFFR/CR can be offered upon request.

Technical Data

Rated Voltage Uo/U (Um) 3.6/6(7.2kV); 6/10 (12kV)
Maximum Conductor Temperature 90℃
Short Circuit Temperature 250℃
Operating Temperatures -20℃~+70℃
Minimum Bending Radius static: 10×OD; dynamic: 20×OD
Impacted Resistant Yes
Weather Resistant Yes

Dimensions and Weight

3.6/6 (7.2kV)

Construction No. of Strand Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
No. ×mm² - mm mm mm kg/km
1×6 7 2.7 1.4 12.5 198

6/10 (12kV)

Construction No. of Strand Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
No. ×mm² - mm mm mm kg/km
1×6 7 3.6 1.6 14.7 250
