Secondary Circuit Cable 450/750V to ADP Specification

Secondary Circuit Cable 450/750V to ADP Specification

Applications

Secondary Circuit Cable 450/750V to ADP Specification cables are used for connection between transformers and Airfield Lighting Equipment.

Standards

ADP (Aéroport de Paris) specification

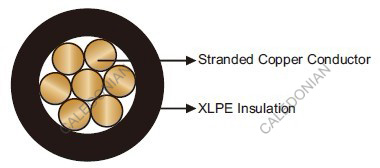

Construction

Conductor: Stranded bare copper.

Insulation: XLPE.

Technical Data

Rated Voltage Uo/U (Um) 450/750V
Maximum Conductor Temperature 90℃
Short Circuit Temperature 250℃
Operating Temperatures -20℃~+70℃
Minimum Bending Radius 5×OD
Impacted Resistant> Ye
Weather Resistant Yes

Dimensions and Weight

Construction Nominal Insulation Thickness Minimum Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm² mm mm mm kg/km
1×4 0.7 3.5 4.5 42
