400Hz Airport Cables 7-core With Concentric Copper Wire Shield & Control Wire

400Hz Airport Cables 7-core With Concentric Copper Wire Shield & Control Wire

Applications

These cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.

Standards

VDE 0295

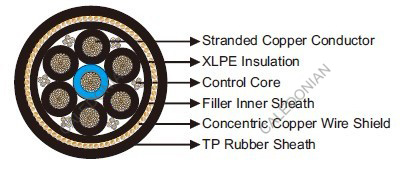

Construction

Conductor: Stranded bare copper conductor, Class 6 to VDE 0295/IEC 60228.
Insulation: XLPE
Control Core: 1mm² stranded copper conductor with PVC insulation.
Inner Sheath: Filler
Shield: Concentric copper conductor (25mm²).
Outer Sheath: TP rubber

Technical Data

Rated Voltage Uo/U (Um) 600/1000V
Operating Temperatures -55℃~+85℃
Minimum Bending Radius static: 8×OD; dynamic: 12×OD
Flame Retardant Yes

Dimensions and Weight

Construction Nominal Diameter of Power Core Nominal Diameter of Control Core Nominal Diameter Under Shield Nominal Overall Diameter Nominal Weight
No. ×mm² mm mm mm mm kg/km
7×35+6×(4×1) 10.5 2.1 40.8 42.8 3000
