?Flat Single Pair Glass Insulated

Applications

These cables are used with thermocouples for temperature measurements.

Specification

  • Conductor: Solid or stranded. Material is according to thermocouple type.
    Insulation: Glass wrap or glass braid
    Outer sheath: Glass braid or stainless steel braid
    Construction: Flat
    Color code: According to IEC 60584-3

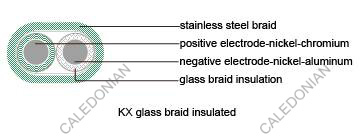

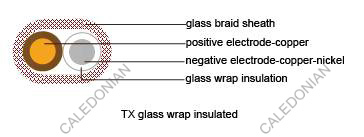

  Flat Single Pair Glass Insulated Thermocouple Cables
  Flat Single Pair Glass Insulated Thermocouple Cables

K Type

AWG(mm)
 Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
36 (0.13) Glass Wrap Glass Braid 482
0.8 x 1.1
 3.4
30 (0.25) Glass Wrap Glass Braid 482
0.9 x 1.3
 6.7
28 (0.32) Glass Wrap Glass Braid 482
1.0 x 1.4
 7.3
26 (0.41) Glass Braid Glass Braid 482
1.1 x 1.9
 8.4
24 (0.51) Glass Braid Glass Braid 482
1.3 x 2.0
 10.0
24 (7/0.2) Glass Braid Glass Braid 482
1.3 x 2.2
 10.3
20 (0.81) Glass Braid Glass Braid 482
1.5 x 2.1
 13.4
20 (7/0.32) Glass Braid Glass Braid 482
1.5 x 2.5
 13.8

K Type

AWG(mm)
 Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
24 (0.51) Glass Braid Stainless Steel Braid 482 2.0 x 2.8 16.7
24 (7/0.2) Glass Braid Stainless Steel Braid 482 2.2 x 3.0 18.3
20 (0.81) Glass Braid Stainless Steel Braid 482 2.3 x 3.0 20.0
20 (7/0.32) Glass Braid Stainless Steel Braid 482 2.3 x 3.2 23.4

J Type

AWG(mm)
 Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
36 (0.13) Glass Wrap Glass Braid 320
0.8 x 1.1
 3.4
30 (0.25) Glass Wrap Glass Braid 320
0.9 x 1.3
 6.7
28 (0.32) Glass Wrap Glass Braid 370
1.0 x 1.4
 7.3
26 (0.41) Glass Braid Glass Braid 370
1.1 x 1.9
 8.4
24 (0.51) Glass Braid Glass Braid 370
1.3 x 2.0
 10.0
24 (7/0.2) Glass Braid Glass Braid 370
1.3 x 2.2
 10.3
20 (0.81) Glass Braid Glass Braid 480
1.5 x 2.1
 13.4
20 (7/0.32) Glass Braid Glass Braid 480
1.5 x 2.5
 13.8

T Type

AWG(mm)
 Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
30 (0.25) Glass Wrap Glass Braid 150
0.9 x 1.3
6.7
28 (0.32) Glass Wrap Glass Braid 200
1.0 x 1.4
7.3
26 (0.41) Glass Wrap Glass Braid 200
1.1 x 1.9
8.4
24 (0.51) Glass Braid Glass Braid 200
1.3 x 2.0
10.0
24 (7/0.2) Glass Braid Glass Braid 200
1.3 x 2.2
10.3
20 (0.81) Glass Braid Glass Braid 260
1.5 x 2.4
13.4
20 (7/0.32) Glass Braid Glass Braid 260
1.5 x 2.5
13.8

N Type

AWG(mm)
 Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
30 (0.25) Glass Braid Glass Braid 482 0.9 x 1.3 3.4
24 (0.51) Glass Braid Glass Braid 482 1.3 x 2.0 5.1
20 (0.81) Glass Braid Glass Braid 482 1.5 x 2.1 6.7
