Shielded Sensor Cable

• APPLICATION

• Smaller cables providing easier handling and space savings.
  Compatible with wire-handling equipment used in harness shops.
  Compatible with over-molding processes and materials used in sensor assembly.

• STANDARD

• Basic design to EN50264

• FIRE PERFORMANCE

• Flame Retardance (Single vertical wire or cable test)	IEC 60332-1-2; EN 60332-1-2
  Reduced Fire Propagation (Vertically-mounted bundled wires & cables test)	IEC 60332-3-24; EN 60332-3-24
  Halogen Free	IEC 60754-1; EN 50267-2-1
  No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2
  Minimum Smoke Emission	IEC 61034-2; EN 61034-2

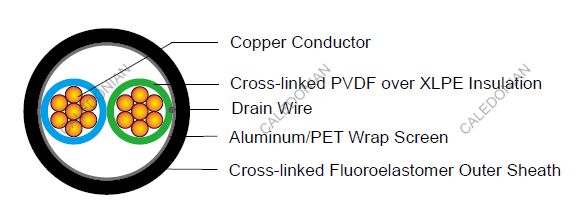

• CONSTRUCTION

• Conductor:Tinned Copper /Bare Copper.
  Insulation: Cross-linked PVDF over XLPE.
  Screen: Aluminum/PET Wrap+ Drain Wire.
  Sheath: Cross-linked Fluoroelastomer or Cross-linked Modified Polyolefin.
  Outer Sheath Option: UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

• COLOUR CODE

• Insulation Colour: Blue,Brown,Black,White,Green(Other colours can be offered upon request).
  Sheath Colour: Black (Other colours can be offered upon request).

• PHYSICAL AND THERMAL PROPERTIES

• Operating temperature :-55°C—200°C.
  Short-term operating temperature:
  240 hours @ 175°C (Cross-linked modified polyolefin sheath);
  160 hours @ 250°C(Cross-linked modified polyolefin sheath);
  6 hours @ 300°C(Cross-linked fluoroelastomer sheath);
  Cold bend :–40°C(Cross-linked modified polyolefin sheath);
  –25°C(Cross-linked fluoroelastomer sheath).
  Flammability :70s(Cross-linked modified polyolefin sheath);
  30s(Cross-linked fluoroelastomer sheath).
  Abrasion: (ISO 6722) > 500 cycles(Cross-linked modified polyolefin sheath);
  > 1000 cycles(Cross-linked fluoroelastomer sheath).
  Fluid resistance: As per ISO6722:2011 (E) Media groups 1 & 2.
  Bending radius: 10xOD during installation;
  5xOD fixed installed.

• CONSTRUCTION PARAMETERS

  CONDUCTOR		SENSOR CABLE
  No.of Cores× Cross Section	Class of Conductor	Min. Overall Diameter	Max. Overall Diameter	Weight
  mm²		mm	mm	kg/km
  2×0.35	2	3.2	3.6	20.0
  3×0.35	2	3.4	3.8	24.8
  2×0.50	2	3.4	3.8	24.8
  3×0.50	2	3.6	4.0	31.0
  2×0.75	2	3.8	4.2	33.0
  3×0.75	2	4.1	4.5	41.7
  2×1.0	2	4.1	4.5	40.7
  3×1.0	2	4.4	4.8	51.8
