RSE/STD/024 Part 6 Types XII Rolling Stock Cables

300/500V Singlecore Standard Wall Unsheathed Cables

Application

These cables are used as power and control cables for protected, fixed installation inside railway vehicles

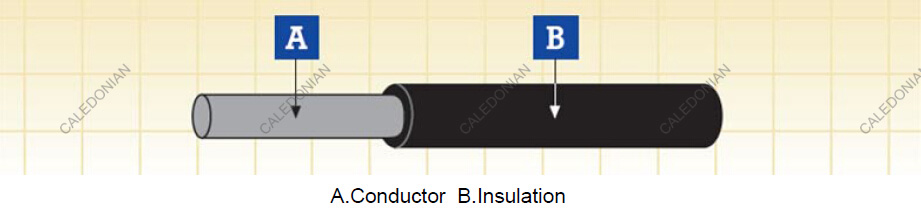

Construction

Conductor Flexible Stranded Tinned Copper
Insulation Cross linked EPR rubber type EI 107

Chemical & Environmental Properties

EN 60684-2 No fluorine
EN 50305; EN 60811-2-1 Resistance to oil & fuel
EN 50305 Resistance to ozone

Fire Performance for rolling stock application

EN 50306-2 Hazard levels HL1, HL2, HL3
DIN 5510-2 Protection level 1/2/3/4
BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101 FO

Fire Performance in general

EN 50265-2-1; IEC 60332-1; BS 4066-1 Vertical flame propogation for a single insulated wire/cable
EN 50266-2-4 + EN 50305; IEC 60332-3C Fire propagation of bunched wires and cables
VDE 0472 Teil 804; BS 4066-3; NFC 32070
EN 50268-2; IEC 61034-2; VDE 0472 Teil 816 Smoke density
EN 50267-2-1; IEC 60754-1; VDE 0472 Teil 815 Halogen Free
EN 50267-2-2/3; IEC 60754-2; VDE 0472 Teil 813 Corrosivity of gases (Acidity & Conductivity)
EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 Toxicity index
NFF 16101; NFF 63808; BS6853 Smoke index



No.of core Nominal Cross
Sectional Area
Nominal Diameter of
Strands
Nominal Overall
Diameter
Nominal Weight Maximum Conductor
Resistance@20℃
mm2 No/mm mm kg/km Ω/km
1 1.0 32/0.2 3.3 19 20.0
1 1.5 30/0.25 3.7 26 13.7
1 2.5 50/0.25 4.2 38 8.21
1 4.0 56/0.3 5.0 57 5.09
1 6.0 84/0.3 5.6 80 3.39
