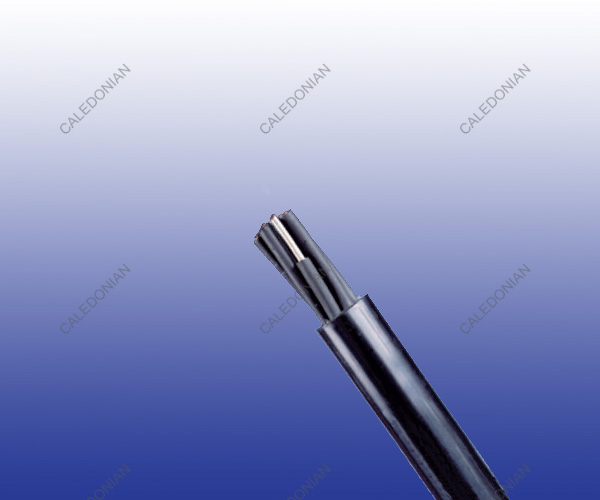

SCG Local Control Cables

SCG Local Control Cables

Application

The SCG Local Control Cables are designed as local control or power supply cables for trackside and between the rails equipments inside the equipment shelter.

Standards

SNCF CT 466

Construction

Conductors
Class 1 tinned solid copper.

Insulation
Cross-linked black polyethylene (XLPE) insulation.

Sheath
PVC sheath, coloured black.

Electrical Characteristics at 20℃

No of Strands/ Strand Diameter No/mm 1.78 2.76
Nominal Cross Section Area mm² 2.5 6
Maximum Conductor Resistance (DC) Ω/km 7.56 3.11
Operating Voltage V 750

Mechanical and Thermal Properties

Minimum Bending Radius: 5×OD (static); 10×OD (dynamic)
Operating Temperature: -20℃ to +90℃

Dimensions And Weight

Cable Code Number of Cores Nominal Sheath Thickness
mm
Nominal Overall Diameter
mm
Nominal Weight
kg/km
1.78mm Conductor, 4mm Insulated Wire
RS/SCG-075-2XY-2G2.5 2 3.0 14 227
RS/SCG-075-2XY-4G2.5 4 3.2 17 336
RS/SCG-075-2XY-6G2.5 6 3.7 19.5 475
RS/SCG-075-2XY-8G2.5 8 3.9 21 542
2.76mm Conductor, 5.4mm Insulated Wire
RS/SCG-075-2XY-2G6 2 3.6 18 384
RS/SCG-075-2XY-4G6 4 3.7 20.5 550
RS/SCG-075-2XY-6G6 6 3.9 23.5 780
RS/SCG-075-2XY-8G6 8 3.1 26 940
