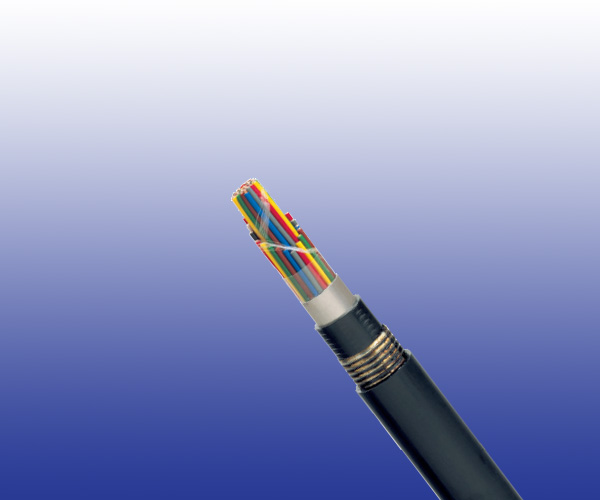

EAPSP n×4×0.9/1.3/1.4 Railway Signalling Cable

EAPSP n×4×0.9/1.3/1.4 Railway Signalling Cable

Application

The EAPSP n×4×0.9/1.3/1.4 Railway Signalling Cables are used as railway cables and can be installed directly into the ground or in ducts.

Standards

RENFE E.T. 03.365.051.6

Construction

Conductors
Soft annealed solid copper, 0.9/1.3/1.4 mm nominal diameter.

Insulation
PE insulation.

Cabling Element
Four insulated conductors are twisted together to form a quad.

Stranding
Star quads are helically stranded in concentric layers.

Core Wrapping
Plastic tape(s) with overlapping.

Moisture Barrier
One laminated sheath made of aluminium tape (0.2mm thick) coated with copolymer on at least one side is applied with longitudinally overlap.

Inner Sheath
PE sheath.

Armour
One corrugated steel tape is longitudinally applied with overlap.

Outer Sheath
PE sheath.

Optional

Jelly Filled Cables: The cable core interstices are fi lled with petroleum jelly to avoid longitudinal water penetration
within the cable. The water resistant filling compound is applied to the air space between non-hygroscopic tape and shield, shield and sheath within the cable core.

Electrical Characteristics at 20℃

Nominal Conductor Diameter mm 0.9 1.3 1.4
Maximum Conductor Resistance Ω/km 28.5 13.7 11.7
Minimum Insulation Resistance @500 V DC MΩ.km 25000 25000 25000
Resistance Unbalance % 1 1 1
Mutual Capacitance @800Hz nF/km 41 45 45
Capacitance Unbalance @800Hz
K1 mean value/individual value pF/460m 35/250 35/250 35/250
K9-12 mean value/individual value pF/460m 35/250 35/250 35/250
ea1/2 mean value/individual value pF/460m 320/1200 320/1200 320/1200
Attenuation @1KHz dB/km 0.7 0.5 0.46
Test Voltage @50Hz 1min
Core to Core Veff 2100 2100 2100
Core to Screen Veff 2500 2500 2500
Core to Armouring Veff 2000 2000 2000

Mechanical and Thermal Properties

Minimum Bending Radius: 10×OD
Temperature Range: -30℃ to +70℃ (during operation); -10℃ to +50℃ (during installation)

Dimensions And Weight

EAPSP n×4×0.9/1.3/1.4 Cables
Cable Code Number of
Quads
(n)
Nominal Sheath Thickness
mm
Maximum Overall
Diameter
mm
Nominal Weight
kg/km
Inner Outer
0.9mm Conductor, 1.8mm Insulated Wire
RS/EAPSP-2Y(L)2YB2Y-1Q0.9 1 1.3 1.4 15.5 240
RS/EAPSP-2Y(L)2YB2Y-3Q0.9 3 1.3 1.4 19.5 380
RS/EAPSP-2Y(L)2YB2Y-5Q0.9 5 1.3 1.4 22.0 490
RS/EAPSP-2Y(L)2YB2Y-7Q0.9 7 1.3 1.4 24.0 580
RS/EAPSP-2Y(L)2YB2Y-10Q0.9 10 1.3 1.4 27.5 750
RS/EAPSP-2Y(L)2YB2Y-14Q0.9 14 1.4 1.6 30.0 920
1.3mm Conductor, 2.5mm Insulated Wire
RS/EAPSP-2Y(L)2YB2Y-1Q1.3 1 1.3 1.4 16.0 270
RS/EAPSP-2Y(L)2YB2Y-3Q1.3 3 1.3 1.4 20.5 470
RS/EAPSP-2Y(L)2YB2Y-5Q1.3 5 1.4 1.6 26.5 680
RS/EAPSP-2Y(L)2YB2Y-7Q1.3 7 1.4 1.6 27.0 840
RS/EAPSP-2Y(L)2YB2Y-10Q1.3 10 1.4 1.6 30.5 1100
RS/EAPSP-2Y(L)2YB2Y-14Q1.3 14 1.5 1.6 34.0 1400
1.4mm Conductor, 2.6mm Insulated Wire
RS/EAPSP-2Y(L)2YB2Y-1Q1.4 1 1.3 1.4 18.0 330
RS/EAPSP-2Y(L)2YB2Y-3Q1.4 3 1.3 1.4 23.0 560
RS/EAPSP-2Y(L)2YB2Y-5Q1.4 5 1.4 1.6 26.5 770
RS/EAPSP-2Y(L)2YB2Y-7Q17 7 1.4 1.6 29.0 950
RS/EAPSP-2Y(L)2YB2Y-10Q1.4 10 1.4 1.6 34.0 1280
RS/EAPSP-2Y(L)2YB2Y-14Q1.4 14 1.5 1.6 38.0 1650
RS/EAPSP-2Y(L)2YB2Y-19Q1.4 19 1.6 1.8 43.0 2120

EAPSP-R n×4×0.9/1.3 Jelly Filled Cables

Cable Code Number of
Quads
(n)
Nominal Sheath Thickness
mm
Maximum Overall
Diameter
mm
Nominal Weight
kg/km
Inner Outer
0.9mm Conductor, 1.8mm Insulated Wire
RS/EAPSP-R-2Y(F)(L)2YB2Y-1Q0.9 1 1.3 1.4 16.5 270
RS/EAPSP-R-2Y(F)(L)2YB2Y-3Q0.9 3 1.3 1.4 22.0 470
RS/EAPSP-R-2Y(F)(L)2YB2Y-5Q0.9 5 1.3 1.4 25.0 630
RS/EAPSP-R-2Y(F)(L)2YB2Y-7Q0.9 7 1.3 1.4 26.7 730
RS/EAPSP-R-2Y(F)(L)2YB2Y-10Q0.9 10 1.3 1.4 31.5 980
RS/EAPSP-R-2Y(F)(L)2YB2Y-12Q0.9 12 1.4 1.6 32.8 1090
RS/EAPSP-R-2Y(F)(L)2YB2Y-14Q0.9 14 1.4 1.6 34.6 1230
RS/EAPSP-R-2Y(F)(L)2YB2Y-19Q0.9 19 1.5 1.6 39.0 1560
RS/EAPSP-R-2Y(F)(L)2YB2Y-25Q0.9 25 1.5 1.6 43.2 1940
1.3mm Conductor, 2.5mm Insulated Wire
RS/EAPSP-R-2Y(F)(L)2YB2Y-1Q1.3 1 1.3 1.4 18.0 360
RS/EAPSP-R-2Y(F)(L)2YB2Y-3Q1.3 3 1.3 1.4 23.0 570
RS/EAPSP-R-2Y(F)(L)2YB2Y-5Q1.3 5 1.4 1.6 29.5 830
RS/EAPSP-R-2Y(F)(L)2YB2Y-7Q1.3 7 1.4 1.6 29.7 980
RS/EAPSP-R-2Y(F)(L)2YB2Y-10Q1.3 10 1.4 1.6 34.5 1330
RS/EAPSP-R-2Y(F)(L)2YB2Y-12Q1.3 12 1.5 1.8 38.0 1580
RS/EAPSP-R-2Y(F)(L)2YB2Y-14Q1.3 14 1.5 1.8 38.6 1710
RS/EAPSP-R-2Y(F)(L)2YB2Y-19Q1.3 19 1.6 2.0 45.5 2260
RS/EAPSP-R-2Y(F)(L)2YB2Y-25Q1.3 25 1.6 2.0 50.5 2840
