K26 LSZH 50/75Ω Coaxial Cables

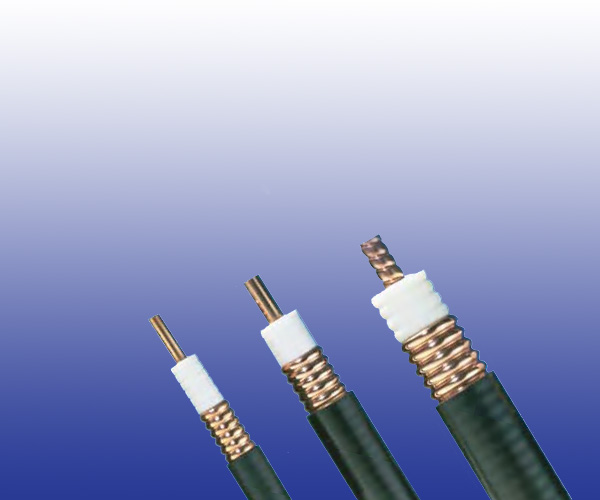

K26 LSZH 50/75Ω Railway Coaxial Cables

Application

The K26 50Ω railway Coaxial cables are HF transmission coaxial cables for GSM antennas, and the 75Ω cables are HF transmission coaxial cables for cameras (type KX6), and video surveillance (type 11 RTC). The Halogen-free cables are suitable for laid on hooks, and pulled through walls or through technical ducts.

Standards

RATP K26
Fire Performance: NF C 32070.2.2

Construction

Inner Conductors
50Ω cables:

Flexible Type (F)- solid copper coated aluminium (for 1/4″ , 3/8″ &1/2″ F conductor); red copper tube (for
7/8″ and 1'1/4 F conductor); corrugated red copper tube (for 1'5/8 F conductor).
Super Flexible Type (SF) - solid copper coated aluminium (for 3/8″ & 1/2″ SFconductor); helical corrugated
copper tube (for 7/8” SF conductor); copper wire (for 1/4″ SFconductor).
Extra Flexible (XF) – copper wire (for 1/4" XF conductor); solid copper coated aluminium (for 3/8" XF
conductor).

75Ω cables: solid red copper (for type 11 RTC) or red copper tube (for type KX6).

Dielectric
Cellular PE or natural PE (only for KX6 type).

Outer Conductor

50Ω cables: corrugated copper tube.
75Ω cables: copper braid.

Outer sheath
LSZH.

Electrical Characteristics at 20℃

50Ω Cables

Type of Cable inch 1/4"F 3/8"F 1/2"F 7/8"F 1'1/4F 1'5/8F
Impedance Ω 50 50 50 50 50 50
Attenuation
@10MHz dB/100m 1.25 1.46 0.65 0.34 0.25 0.2
@150MHz dB/100m 4.99 4.22 2.61 1.45 1.02 0.85
@200MHz dB/100m 5.8 4.90 3.04 1.69 1.19 1.00
@450MHz dB/100m 8.8 7.51 4.66 2.61 1.86 1.57
@900MHz dB/100m 12.8 11.1 6.78 3.81 2.75 2.34
@1000MHz dB/100m 13.5 11.6 7.18 4.04 2.93 2.49

@1500MHz

dB/100m 17.0 14.4 8.99 5.08 3.72 3.17
@1500MHz dB/100m 18.3 15.5 9.64 5.45 4.01 3.42
Average Power Rating
@10MHz KW 5.79 7.23 13 28.0 41 57
@150MHz KW 1.45 1.81 3.2 7.0 11 13
@200MHz KW 1.25 1.56 2.75 6.0 9.0 11
@450MHz KW 0.818 1.02 1.8 3.88 5.5 6.9
@900MHz KW 0.566 0.70 1.25 2.65 3.83 4.49
@1000MHz KW 0.533 0.663 1.18 2.50 3.60 4.20
@1500MHz KW 0.426 0.53 0.947 1.99 2.82 3.22
@1700MHz KW 0.398 0.494 0.884 1.85 2.61 2.96
Velocity of Propagation % 85 88 88 88 88 88
Type of Cable inch 1/4"SF 3/8"SF 1/2"SF 7/8"SF 1/4"XF 3/8"XF
Impedance Ω 50 50 50 50 50 50
Attenuation
@10MHz dB/100m 1.71 1.3 0.83 0.39 2.31 1.098
@150MHz dB/100m 6.89 4.89 3.87 1.59 7.44 4.38
@200MHz dB/100m 8.01 5.59 4.53 1.85 8.54 5.098
@450MHz dB/100m 12.31 8.49 7.09 2.85 14.3 7.83
@900MHz dB/100m 17.92 12.66 10.45 4.15 20.5 11.4
@1000MHz dB/100m 18.98 13.5 11.09 4.4 21.83 12.1
@1500MHz dB/100m 23.78 17.43 13.98 5.52 27.13 15.1
@1700MHz dB/100m 25.51 18.91 15.03 5.92 29.5 16.2
Average Power Rating
@10MHz KW 2.8 6.0 8.4 21.5 3.8 7.02
@150MHz KW 0.7 1.52 2.1 5.4 0.9 1.76
@200MHz KW 0.6 1.31 1.81 4.6 0.8 1.51
@450MHz KW 0.39 0.86 1.18 3.0 0.51 0.99
@900MHz KW 0.272 0.593 0.815 2.07 0.37 0.68
@1000MHz KW 0.257 0.56 0.77 1.95 0.34 0.64
@1500MHz KW 0.206 0.449 0.616 1.55 0.26 0.51
@1700MHz KW 0.192 0.42 0.575 1.45 0.24 0.48
Velocity of Propagation % 83 81 82 88 84 85

75Ω Cables

Type of Cable inch 11 RTC KX6
Impedance Ω 75 75
@50MHz dB/100m 2.5 8.13
@100MHz dB/100m 3.6 11.73
@150MHz dB/100m 4.6 14.73
@200MHz dB/100m 5.4 16.92
@500MHz dB/100m 8.5 27.0
@800MHz dB/100m 10.5 35.1
@1000MHz dB/100m 12.2 40.02
Velocity of Propagation % 87 66

Mechanical and Thermal Properties

Minimum Bending Radius: 7.5×OD

Temperature Range:

50Ω cables: -40℃ to +85℃ (during operation); -20℃ to +60℃ (during installation);
75Ω cables: -20℃ to +85℃ (during operation); -10℃ to +60℃ (during installation).

Dimensions And Weight

50Ω Cables

Cable Code Nominal Inner
Conductor Diameter
mm
Nominal Outer
Conductor Diameter
mm
Nominal Overall
Diameter
mm
Nominal Overall
Diameter
mm

1/4″ F Cable Type

RS/K26-F-HCAAYZ-50-6(1/4") 2.5 7.6 9.5 145
3/8″ F Cable Type
RS/K26-F-HCAAYZ-50-8(3/8") 3.3 9.5 11.5 204
1/2″ F Cable Type
RS/K26-F-HCAAYZ-50-12(1/2") 4.8 13.7 16.0 248
7/8″ F Cable Type
RS/K26-F-HCTAYZ-50-22(7/8") 9.0 24.8 27.75 575
1'1/4 F Cable Type
RS/K26-F-HCTAYZ-50-32(1'1/4) 13.0 35.7 39.5 1133
1'5/8 F Cable Type
RS/K26-F-HHTAYZ-50-42(1'5/8) 17.3 46.2 50.0 1631
1/4″ SF Cable Type
RS/K26-HRYZ-50-5(1/4" SF) 1.9 6.4 7.95 99
3/8″ SF Cable Type
RS/K26-HRCAYZ-50-7(3/8" SF) 2.8 9.6 11.15 159
1/2″ SF Cable Type
RS/K26-HRCAYZ-50-9(1/2" SF) 3.6 12.1 13.65 201
7/8″ SF Cable Type
RS/K26-HRCTYZ-50-22(7/8" SF) 9.4 25.0 27.5 550
1/4″ XF Cable Type
RS/K26-HRYZ-50-5(1/4" XF) 5.75 5.6 6.85 69
3/8″ XF Cable Type
RS/K26-HRCAYZ-50-7(3/8" XF) 2.76 8.0 10.1 111

*F = fl exible, SF = super fl exible, XF = extrafl exible

75Ω Cables

Cable Code Nominal Inner
Conductor Diameter
mm
Nominal Outer Conductor
Diameter
mm
Nominal Overall
Diameter
mm
Nominal Weight
kg/km
11 RTC Cable Type
RS/K26-11RTC-BC80-H 1.7 7.85 10.3 115
KX6 Cable Type
RS/K26-KX6-BC80-H 0.6 4.85 7.2 66
