K209B LSZH Armoured Optical Fiber Cables

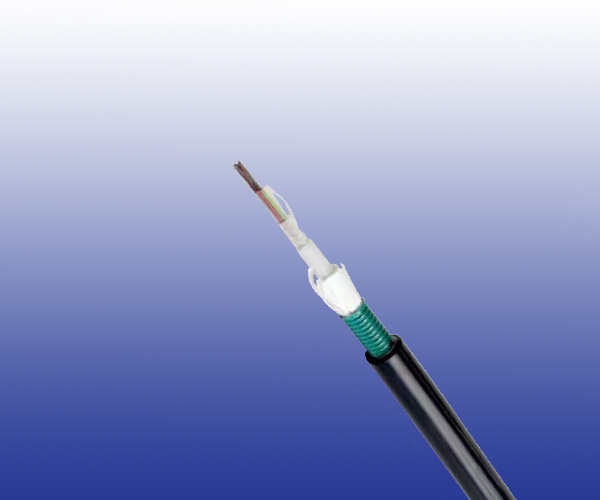

K209B LSZH Armoured railway Optical Fiber cablesK209B LSZH Armoured railway Optical Fiber cables

Application

The K209B LSZH Armoured railway Optical Fiber cables are designed for long distance telecommunication and using optical fibres in urban railways infrastructure. These low smoke halogen-free cables are laid on hooks, pulled through ducts or cable trays.

Standards

● RATP K209B or RATP K209A

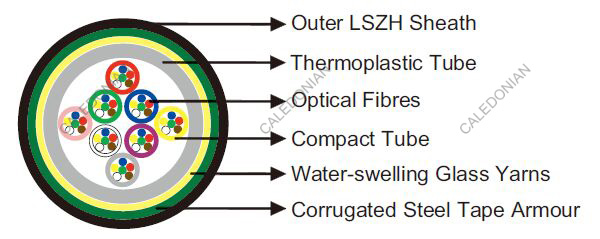

Construction

Compact Tube
6 or 12 singlemode optical fibres G652 or multimode fi bers assembled under thermoplastic “peelable” skin. Tube diameter: maximum 1.5mm.

Filling
Water-swelling yarns.

Tube
Thermoplastic.

Peripheral Strength Member
Water-swelling glass yarns.

Armour
Corrugated steel tape armour 25/100.

Sheath
LSZH.

Optional

K209A Type: For K209A type, the cables have loose tubes with 6-12 fi bers, steel wire strand as central strength member, glass yarn reinforced, incorporating a corrugated steel tape armour and an outer UV stabilized LSZH jacket.

Electrical Characteristics at 20℃

Optical & Geometrical Properties for Single Mode Fibers

Maximum Attenuation G652
@1310nm dB/km 0.35
@1550nm dB/km 0.22
Maximum Chromatic Dispersion
Between 1260 and 1360nm ps/(nm/km) 3.5
Between 1530 and 1565nm ps/(nm/km) 19
Zero Dispersion Wavelength nm 1310±11
Zero Dispersion Slope ps/(nm2.km) 0.09
Numerical Aperture 0.14
Point discontinuity dB 0.1
PMD (individual fi ber) ps/km 0.2
Maximum Cutoff Wavelength nm 1260
Cladding Diameter um 125±1
Core/Cladding Concentricity Error um ≤0.5
Cladding Non Circularity % ≤1
Coating Non Circularity % ≤6
Proof Test Level Kpsi (GN/m2) 100 (0.7)
Crush Resistance N/cm 300
Maximum Laying Tension N 3000

Optical & Geometrical Properties for Multimode Fibers

  50/125 62.5/125
Maximum Attenuation
@850nm dB/km ≤2.5 ≤3.0
@1300nm dB/km ≤0.7 ≤0.8
Maximum Chromatic Dispersion
@850nm MHz*km ≥500 ≥200
@1300nm MHz*km ≥800 ≥500
Zero Dispersion Wavelength nm 1310 1310
Numerical Aperture - 0.20±0.015 0.275±0.015
Core Diameter um 50±3 62.5±3
Cladding Diameter um 125±2 125±2
Core/Cladding Concentricity Error(Offset) um ≤1.5 ≤1.5
Coating-Clad Concentricity Error(Offset) um ≤8 ≤8
Core Non-Circularity % ≤6 ≤6
Cladding Non-Circularity % ≤2 1 ≤2 1
Coating Diameter um 245±10 245±10
Proof-Test Level Kpsi (GN/m2) 100 (0.7) 100 (0.7)

Mechanical and Thermal Properties

Minimum Bending Radius:20×OD
Temperature Range: -40℃ to +60℃ (during operation); -10℃ +60℃ (during installation)

Dimensions And Weight

K209A

Cable Code No. of
fibres
Distribution Nominal
Sheath
Thickness
mm
Nominal
Overall
Diameter
mm
Nominal
Weight
kg/km
RO/K209A-ML-C-9-TnxFn-SR-(STA)H 1-36 6 fi bre per tubes 1.8 12 190
RO/K209A-ML-C-9-TnxFn-SR-(STA)H 42-72 6/12 fi bre per tubes 1.8 13.5 230

Tn: Number of tubes; Fn: Number of fi bers in a tube

K209B

Cable Code No. of
fibres
No of Tubes x No of
Fibers/Tube
Nominal Sheath
Thickness
mm
Nominal Overall
Diameter
mm
Nominal
Weight
kg/km
Singlemode Fibres From 6 to 36 OF – G652
RO/K209B-ML-C-9-2x6-F-(STA)H 12 2 tubes of 6 OF 1.8 13 112
RO/K209B-ML-C-9-4x6-F-(STA)H 24 4 tubes of 6 OF 1.8 13 112
RO/K209B-ML-C-9-6x6-F-(STA)H 36 6 tubes of 6 OF 1.8 13 112
Singlemode Fibres From 48 to 72 OF – G652
RO/K209B-ML-C-9-8x6-F-(STA)H 48 8 tubes of 6 OF 2.5 15.5 230
RO/K209B-ML-C-9-6x12-F-(STA)H 72 6 tubes of 12 OF 2.8 15.5 230
Multimode Fibres From 6 to 36 OF – 50/125
RO/K209B-ML-C-9-1x6-F-(STA)H 6 1 tubes of 6 OF 1.8 13 112
RO/K209B-ML-C-9-2x6-F-(STA)H 12 2 tubes of 6 OF 1.8 13 112
