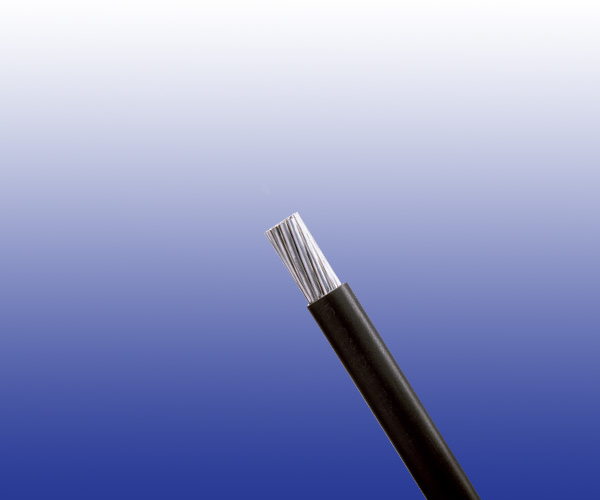

0.6/1KV Limited Fire Hazard Rail Connection Cables to SE902

Railway Cables

Application

The single core high performance power cables are used in safety signalling equipment rooms.

Standards

● SE902
● UNE 21123

Construction

Conductors
Stranded tinned copper conductors to IEC 60228 class 2 or 5.

Insulation
XLPE.

Sheath
LSZH.

Electrical Characteristics at 20℃

Nominal Conductor Cross Section mm² 4.0
Maximum DC Conductor Resistance Ω/km 4.7
Voltage Rating KV 0.6/0.1

Mechanical and Thermal Properties

Minimum Bending Radius: 7.5×OD
Temperature Range:-25℃ to +85℃ (during operation); -10℃ to +70℃ (during installation)

Dimensions And Weight

Cable Code No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm²
No. & Nominal
Diameter of
Strands
No/mm
Nominal
Insulation
Thickness
mm
Nominal
Overall
Diameter
mm
Nominal
Weight
kg/km
RF902-RZ1-U-0.6/1KV-1G4S 1×4.0 7/0.85 0.8 8.8 124

U is changed to K if the stranding class is changed from class 2 to class 5
