FTN Screening Conductor Cables

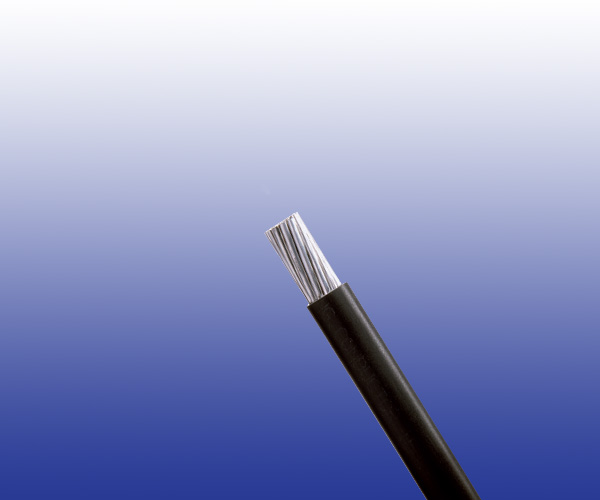

FTN Screening Conductor Cables

Application

The FTN Screening Conductor Cables are designed to be used for the purpose of screening telecommunication cables from electrical interference.

Standards

NR/PS/TEL/31102(BR1817)
BS 6485

Construction

Conductors
Single core stranded aluminium to BS 215PT1.

Insulation
PVC type 16 to BS 6485 or LSZH.

Electrical Characteristics at 20℃

Nominal Conductor Cross Section mm² 150 250
Maximum DC Conductor Resistance Ω/km 0.1825 0.1083

Mechanical and Thermal Properties

Minimum Bending Radius: 9×OD
Temperature Range:0℃ to +70℃ (during operation); 0℃ to +55℃ (during installation)

Dimensions And Weight

Cable Code No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm²
No. & Nominal
Diameter of
Strands
No/mm
Nominal
Thickness of
Insulation
mm
Nominal
Overall
Diameter
mm
Nominal
Weight
kg/km
RF31102-H07V-U-450/750V-1G150AL 1×150 19/3.25 1.6 19.45 629
RF31102-H07V-U-450/750V-1G250AL 1×250 19/4.22 1.6 24.30 995

U is changed to K if the stranding class is changed from class 2 to class 5
