FRA 155/S EMC Screened Multicore

Applications :

  • FRA 155/S EMC Screened Multicore cable with very high resistance to temperature designed for internal wiring in lamps, heating appliances and distribution boxes in apparatus, mechanical and plant engineering, etc. Used for fixed and flexible application in dry, humid and wet rooms.

Standards :

  • EN45545-2
  • IEC 60332-1, EN 50265-2-1 (flame retardant)
  • EN 50266-2 (non-flame propagating)

FRA 155/S EMC Screened Multicore Railway CablesFRA 155/S EMC Screened Multicore Railway Cables

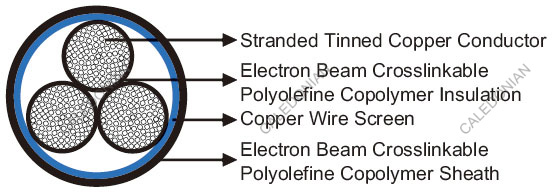

Construction :

  • Conductors : Class 5 stranded tinned copper to IEC60228/VDE 0295.
  • Insulation : Electron beam crosslinkable polyolefine copolymer.
  • Screen : Copper wire screen.
  • Sheath : Electron beam crosslinkable polyolefi ne copolymer.

Electrical Characteristics at 20 °C :

  • Nominal Conductor Cross Section mm² 0.25 0.50 1.5 2.5
    Maximum Conductor Resistance Ω/km 85.9 40.1 13.7 8.21
    Voltage Rating V 450/750V (≤0.5mm²); 600/1000V (>0.5mm²)

Mechanical and Thermal Properties :

  • Minimum Bending Radius : 4xOD (Static); 6xOD (Flexing).
  • Temperature Range : -55℃ ~+155℃ (Static); -40℃ ~+120℃ (Flexing).
  • Short Circuit Temperature : +280℃.

Dimensions and Weight :

No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm²
Number and Nominal Diameter of Strands
No./mm
Nominal Insulation Thickness
mm
Nominal Overall
Diameter
mm
Nominal Weight
kg/km
2×0.25 19/0.13 0.5 5.1 34
6×0.25 19/0.13 0.5 7.0 67
4×2×0.25 19/0.13 0.5 14.0 277
4×0.5 16/0.20 0.5 7.6 76
16×0.5 16/0.20 0.5 11.6 206
3×1.5 30/0.25 0.6 8.7 119
10×1.5 30/0.25 0.6 14.7 332
16×1.5 30/0.25 0.6 22.0 740
8×2.5 50/0.25 0.7 18.0 498
9×2.5 50/0.25 0.7 18.6 518
NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1 NF C32-070-2.2(C1) IEC 60332-3/EN50266 IEC 60754-1/NF C20-454 EN 50267-2-1 IEC 61034/NFC20-902 EN 50268/NF C32-073 EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453
