0.45/0.75KV Multicore Standard Wall Traction Cables

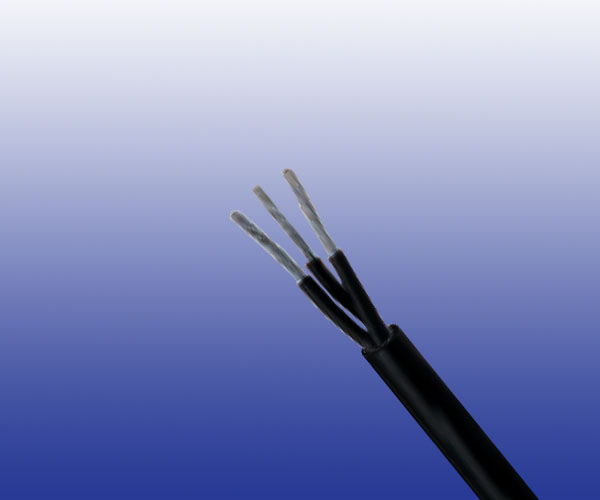

0.45/0.75KV Multicore Standard Wall Traction railway Cables

Application

Multicore power and control cable designed for protected, fi xed installation inside and outside railway vehicles for connecting fi xed and moving parts.

Standards

● BS 6853 -1a
● DIN 5510-1 1-4
● NFF 16-101 F0

Construction

Conductors
Circular Class 5 stranded plain or tinned copper to BS EN 60228: 2005 / BS 6360.

Insulation
Electron beam crosslinkable standard wall LSZH compound.

Outer Sheath
Electron beam crosslinkable LSZH compound.

Optional

FRA-SW-0.75M-OS (Screened)
FRA-SW-0.75M-FR (Fire resistant)

Electrical Characteristics at 20℃

Nominal Conductor Cross Section mm² 1.0 1.5 2.5 4.0 6.0 10 16
Maximum Conductor Resistance Ω/km 20 13.7 8.21 5.09 3.39 1.95 1.24
Voltage Rating KV 0.45/0.75

Mechanical and Thermal Properties

Minimum Bending Radius:3×OD (OD<12mm); 4×OD (OD>12mm)
Temperature Range:-40℃ to +120℃

Dimensions And Weight

Cable Code No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm²
Nominal Diameter of
Strands
mm
Nominal
Insulation
Thickness
mm
Nominal
Overall
Diameter
mm
Nominal
Weight
kg/km
FRA-SW-0.75M-2G1.5 2×1.5 30/0.25 0.7 8.9 127
FRA-SW-0.75M-3G1.5 3×1.5 30/0.25 0.7 9.6 144
FRA-SW-0.75M-4G1.5 4×1.5 30/0.25 0.7 10.6 177
FRA-SW-0.75M-5G1.5 5×1.5 30/0.25 0.7 11.6 186
FRA-SW-0.75M-7G1.5 7×1.5 30/0.25 0.7 12.5 243
FRA-SW-0.75M-13G1.5 13×1.5 30/0.25 0.7 17.0 411
FRA-SW-0.75M-19G1.5 19×1.5 30/0.25 0.7 19.3 586
FRA-SW-0.75M-28G1.5 28×1.5 30/0.25 0.7 23.6 901
FRA-SW-0.75M-37G1.5 37×1.5 30/0.25 0.7 26.6 1068
FRA-SW-0.75M-2G2.5 2×2.5 50/0.25 0.8 10.3 166
FRA-SW-0.75M-3G2.5 3×2.5 50/0.25 0.8 11.1 201
FRA-SW-0.75M-4G2.5 4×2.5 50/0.25 0.8 12.3 252
FRA-SW-0.75M-5G2.5 5×2.5 50/0.25 0.8 13.4 282
FRA-SW-0.75M-7G2.5 7×2.5 50/0.25 0.8 14.6 345
FRA-SW-0.75M-13G2.5 13×2.5 50/0.25 0.8 20.0 616
FRA-SW-0.75M-19G2.5 19×2.5 50/0.25 0.8 22.8 806
FRA-SW-0.75M-28G2.5 28×2.5 50/0.25 0.8 28.2 1236
FRA-SW-0.75M-37G2.5 37×2.5 50/0.25 0.8 31.7 1650
