Railway Cables
3GKW-DW/S EMC 0.6/1KV Dual Wall Screened Multicore

Applications :

Multi core Railway power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts in direct current and alternating voltage technology,especially converter technology.

Standards :

BS 6853 -1a
DIN 5510-1 1-4
NFF 16-101 F0

3GKW-DW/S EMC 0.6/1KV Railway Cables3GKW-DW/S EMC 0.6/1KV Railway Cables

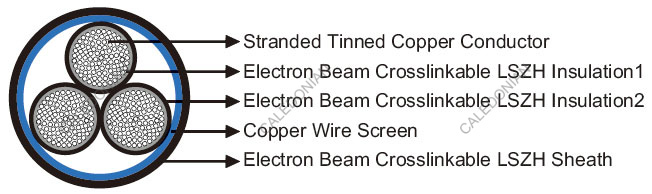

Construction :

Conductors : Circular Class 5 stranded tinned copper to IEC60228/VDE 0295.
Insulation1 : Electron beam crosslinkable LSZH compound.
Insulation2 : Electron beam crosslinkable LSZH compound.
Screen : Copper wire screen.
Sheath : Electron beam crosslinkable LSZH compound.

Electrical Characteristics at 20 °C :

Nominal Conductor Cross Section mm² 0.25 0.5 0.75 1 1.5 2.5
Maximum Conductor Resistance Ω/km 88.5 40.1 26.7 20.0 13.7 8.21
Voltage Rating KV 0.6/1

Mechanical and Thermal Properties :

Minimum Bending Radius : 4xOD (Static); 8xOD (Flexing).
Temperature Range : -60℃ ~+120℃ (Static); -40℃ ~+90℃ (Flexing).
Short Circuit Temperature : +280℃.

Dimensions and Weight :

No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm²
Number and Nominal Diameter of Strands
No./mm
Nominal Insulation Thickness
mm
Nominal Overall
Diameter
mm
Nominal Weight
kg/km
2×2×0.25 19/0.13 0.2 5.7 48
3×2×0.25 19/0.13 0.2 6.1 57
4×2×0.25 19/0.13 0.2 7.0 72
7×2×0.25 19/0.13 0.2 7.8 92
25×0.25 19/0.13 0.2 8.9 139
2×0.5 16/0.20 0.2 4.3 34
3×0.5 16/0.20 0.2 4.5 40
4×0.5 16/0.20 0.2 4.8 47
5×0.5 16/0.20 0.2 5.4 58
6×0.5 16/0.20 0.2 5.9 70
7×0.5 16/0.20 0.2 6.3 80
8×0.5 16/0.20 0.2 6.8 86
9×0.5 16/0.20 0.2 7.2 95
10×0.5 16/0.20 0.2 7.2 101
12×0.5 16/0.20 0.2 7.4 110
15×0.5 16/0.20 0.2 8.3 135
16×0.5 16/0.20 0.2 8.5 142
18×0.5 16/0.20 0.2 8.9 162
20×0.5 16/0.20 0.2 9.3 183
22×0.5 16/0.20 0.2 9.9 195
25×0.5 16/0.20 0.2 10.3 213
27×0.5 16/0.20 0.2 10.5 231
30×0.5 16/0.20 0.2 11.3 265
36×0.5 16/0.20 0.2 12.1 301
42×0.5 16/0.20 0.2 12.9 359
48×0.5 16/0.20 0.2 13.6 410
50×0.5 16/0.20 0.2 14.2 430
2×2×0.5 16/0.20 0.2 6.4 69
3×2×0.5 16/0.20 0.2 6.7 80
4×2×0.5 16/0.20 0.2 7.4 95
5×2×0.5 16/0.20 0.2 9.1 136
6×2×0.5 16/0.20 0.2 9.2 148
8×2×0.5 16/0.20 0.2 9.7 155
10×2×0.5 16/0.20 0.2 10.9 200
12×2×0.5 16/0.20 0.2 12.1 239
15×2×0.5 16/0.20 0.2 13.0 300
16×2×0.5 16/0.20 0.2 13.2 320
20×2×0.5 16/0.20 0.2 14.4 360
2×3×0.5 16/0.20 0.2 7.3 90
2×0.75 24/0.20 0.2 4.8 40
3×0.75 24/0.20 0.2 5.0 50
4×0.75 24/0.20 0.2 5.5 62
5×0.75 24/0.20 0.2 6.1 75
6×0.75 24/0.20 0.2 6.6 85
7×0.75 24/0.20 0.2 7.2 100
8×0.75 24/0.20 0.2 7.7 113
10×0.75 24/0.20 0.2 8.1 130
12×0.75 24/0.20 0.2 8.4 150
14×0.75 24/0.20 0.2 9.1 169
16×0.75 24/0.20 0.2 9.7 206
18×0.75 24/0.20 0.2 10.1 230
20×0.75 24/0.20 0.2 11.1 256
24×0.75 24/0.20 0.2 12.0 294
25×0.75 24/0.20 0.2 12.3 300
2×2×0.75 24/0.20 0.2 7.1 85
3×2×0.75 24/0.20 0.2 7.6 109
4×2×0.75 24/0.20 0.2 9.9 143
5×2×0.75 24/0.20 0.2 10.7 182
6×2×0.75 24/0.20 0.2 11.9 226
7×2×0.75 24/0.20 0.2 13.2 279
8×2×0.75 24/0.20 0.2 13.4 291
10×2×0.75 24/0.20 0.2 14.8 333
3×3×0.75 24/0.20 0.2 8.9 151
5×4×0.75 24/0.20 0.2 12.8 288
2×1.0 32/0.20 0.2 5.0 50
3×1.0 32/0.20 0.2 5.5 60
4×1.0 32/0.20 0.2 5.8 72
5×1.0 32/0.20 0.2 6.6 88
6×1.0 32/0.20 0.2 7.3 114
7×1.0 32/0.20 0.2 7.9 133
8×1.0 32/0.20 0.2 8.5 150
9×1.0 32/0.20 0.2 8.7 160
10×1.0 32/0.20 0.2 8.9 168
12×1.0 32/0.20 0.2 9.2 188
16×1.0 32/0.20 0.2 10.5 250
18×1.0 32/0.20 0.2 11.2 275
25×1.0 32/0.20 0.2 12.7 355
27×1.0 32/0.20 0.2 13.3 395
30×1.0 32/0.20 0.2 13.8 450
36×1.0 32/0.20 0.2 15.1 530
42×1.0 32/0.20 0.2 16.3 604
50×1.0 32/0.20 0.2 17.8 690
2×2×1.0 32/0.20 0.2 7.8 107
4×2×1.0 32/0.20 0.2 9.4 128
6×2×1.0 32/0.20 0.2 11.6 239
12×2×1.0 32/0.20 0.2 14.3 400
4×3×1.0 32/0.20 0.2 11.5 230
3×4×1.0 32/0.20 0.2 11.3 245
4×4×1.0 32/0.20 0.2 12.5 265
2×1.5 30/0.25 0.3 5.8 70
3×1.5 30/0.25 0.3 6.1 81
4×1.5 30/0.25 0.3 6.7 100
5×1.5 30/0.25 0.3 7.7 134
6×1.5 30/0.25 0.3 8.3 153
7×1.5 30/0.25 0.3 9.1 184
8×1.5 30/0.25 0.3 10.3 222
9×1.5 30/0.25 0.3 10.4 234
10×1.5 30/0.25 0.3 10.5 240
12×1.5 30/0.25 0.3 10.9 268
16×1.5 30/0.25 0.3 12.5 364
18×1.5 30/0.25 0.3 13.2 405
25×1.5 30/0.25 0.3 15.8 562
48×1.5 30/0.25 0.3 20.7 988
2×2×1.5 30/0.25 0.3 9.2 153
3×2×1.5 30/0.25 0.3 9.8 205
7×2×1.5 30/0.25 0.3 12.6 330
2×2.5 50/0.25 0.3 7.0 105
3×2.5 50/0.25 0.3 7.6 130
4×2.5 50/0.25 0.3 8.4 170
5×2.5 50/0.25 0.3 9.4 190
6×2.5 50/0.25 0.3 10.3 225
7×2.5 50/0.25 0.3 11.4 270
8×2.5 50/0.25 0.3 12.6 343
10×2.5 50/0.25 0.3 13.2 370
12×2.5 50/0.25 0.3 13.6 420
16×2.5 50/0.25 0.3 15.6 560
18×2.5 50/0.25 0.3 16.6 620
25×2.5 50/0.25 0.3 19.3 834
27×2.5 50/0.25 0.3 20.5 870
48×2.5 50/0.25 0.3 25.6 1560
NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1
NF C32-070-2.2(C1) IEC 60332-3/EN50266
IEC 60754-1/NF C20-454 EN 50267-2-1
IEC 61034/NFC20-902 EN 50268/NF C32-073
EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453
