RG Series Coaxial Cables 50 Ω/75 Ω IEC60092 STANDARD cables

Application

These RG IEC60092 STANDARD Offshore & Marine radio frequency cables are suitable for high frequency data transmission (communication equipment, radar, instrumentation equipment) and video signal transmission

Standards

 MIL C 17 (RG)
 IEC 60092-360
 IEC 60332-1
 IEC 60754-1/2
 IEC 61034

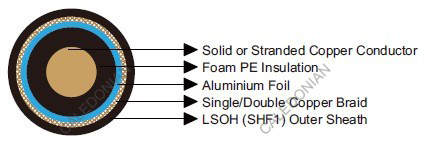

Construction

 Conductors: Solid or stranded TC (Tinned copper), BC (Bare copper), BCW (Bare copperweld), SC (Silvered copper) and SPCCS (Silver plated copper on steel).
 Insulation: Foam PE.
 Fire Barriers: Aluminium foil.
 Screen: Single or double braid. Bare, tinned or silvered copper.
 Outer Sheath: LSOH (SHF1).

Electrical Characteristics

    RG 178 RG 58 RG 174 RG 213 RG 214 RG 59 RG 223 RG 6 RG 11
Capacitance pF/m 100 100 100 100 100 67 100 52 53
Impedance @200MHz Ω 50 ± 2 50 ± 2 50 ± 2 50 ± 2 50 ± 2 75 ± 3 50 ± 2 75 ± 3 75 ± 3
Attenuation @50MHz dB/100m 38 13 21 3 5 10 15 4.6 2.8
Attenuation @100MHz dB/100m 52 21 32 7 8 14 21 6.4 4.1
Attenuation @200MHz dB/100m 74 34 46 13 13 20 30 9.0 5.9
Attenuation @400MHz dB/100m 108 55 82 15 22 29 39 12.8 8.5
Attenuation @1000MHz dB/100m 170 91 147 29 39 52 68 20.8 14.3

Mechanical and Thermal Properties

Bending Radius for Fixed Installations: 10×OD
Temperature Range: -30℃ ~ +60℃

Dimensions and Weight

50 Ω

Part No. Cable Type Conductor
Stranding
No.×mm 		Conductor Diameter mm Dielectric Diameter mm Nominal Overall
Diameter mm 		Nominal Weight kg/km
MLN-RG58C RG 58 CU 19×0.18 TC 0.90 3.0 4.95 40
MLN-RG174A RG 174 AU 7×0.16 BCW 0.48 1.55 2.8 10
MLN-RG213U RG 213 U 7×0.75 BC 2.25 7.3 10.3 157
MLN-RG214U RG 214 U 7×0.75 SC 2.25 7.3 10.8 195
MLN-RG178U RG 178 U 7×0.10 SPCCS 0.30 0.9 1.8 7
MLN-RG223U RG 223 U 1×0.90 SC 0.90 3.02 5.38 55

75 Ω

Part No. Cable Type Conductor
Stranding
No.×mm 		Conductor Diameter mm Dielectric Diameter mm Nominal Overall
Diameter mm 		Nominal Weight kg/km
MLN-RG6 RG 6 1 x 1.0 BC 1.0 4.5 7.1 80
MLN-RG59 RG 59 1 x 0.57 BCW 0.57 3.75 6.15 53
MLN-RG11 RG 11 1 x 1.6 BC 1.6 7.2 10.3 135
