Armoured PROFIBUS 1 Pair 22 AWG

Armoured PROFIBUS 1 Pair 22 AWG IEC60092 STANDARD Offshore & Marine cables

Application

These IEC60092 STANDARD Offshore & Marine profibus cables are dedicated for fixed installation on board of ship, used as connection cables for digital signals up to 12MBd.

Standards

 IEC 60332-1&2
 IEC 60754-1/2
 IEC 61034
 IEC 60092

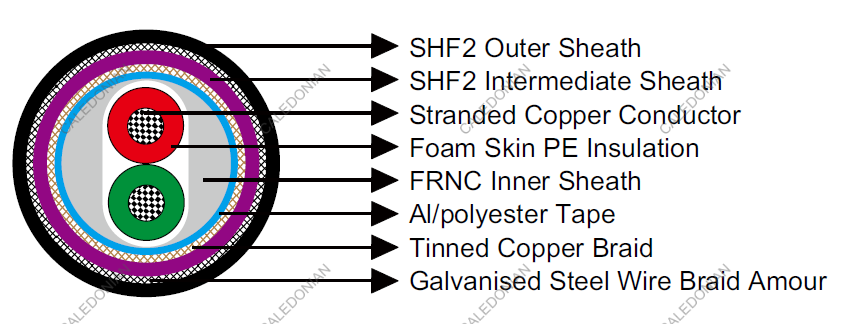

Construction

 Conductors: Stranded bare copper 22 AWG.
 Insulation: Foam skin PE.
 Inner Sheath: Thermoplastic copolymer (FRNC).
 Overall Screen1: Aluminium/polyester tape.
 Overall Screen2: Tinned copper braid.
 Intermediate Sheath: SHF2.
 Armour: Galvanised Steel Wire Braid.
 Outer Sheath: SHF2.

Core Identification

Core 1: Red
Core 2: Green

Electrical Characteristics

Characteristic Impedance Ω 150 ± 15
Mutual Capacitance @1KHz nF/km 28.5
Insulation Resistance MΩ.km 16000
Attenuation @9.6kHz dB/km 2.5
Attenuation @38.4kHz dB/km 4
Attenuation @4kHz dB/km 22
Attenuation @16kHz dB/km 42

Mechanical and Thermal Properties

Bending Radius for Fixed Installations: 10×OD
Temperature Range: -30℃ ~ +75℃

Dimensions and Weight

Part No. Construction
No. of elements×No. of cores in element×Cross
section(mm²)
Core Diameter mm Nominal Overall
Diameter mm
Nominal Weight kg/km
MLN- 02YSH(ST)CHSWBH-1×2×22A 1×2×22 AWG 2.55 10.65 180
