BI/ BU (MRE-M2XH) 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed Fire Resistant Instrumentation & Control Cables (Multicore)

MRE-M2XH 150/250V IEC60092 STANDARD Cables



Application

These BI/ BU (MRE-M2XH) 150/250V IEC60092 STANDARD Offshore & Marine cables are used on board of ships in all locations for fixed installations not subject to mechanical risk complying with IEC standards 60092-352 in safety circuit, where fire resistance is required. These cables are fire resistant, flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.

Standards

IEC 60092-350/360/376
IEC 60331-21
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

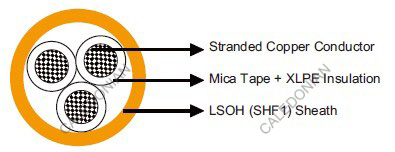

Construction

Conductors: Class 2 stranded copper conductor.
Insulation: Mica tape + XLPE.
Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.

Core Identification

White with printed number.

Mechanical and Thermal Properties

Bending Radius for Fixed Installations: 4×OD
Temperature Range: -30℃ ~ +80℃

Dimensions and Weight

Part No. Construction
No. of cores×Cross
section(mm²)
Nominal Insulation Thickness
mm
Nominal Sheath Thickness mm Nominal Overall
Diameter mm
Nominal Weight kg/km
MRE-M2XH-2C0.75 2×0.75 0.5 1.1 6.3 63
MRE-M2XH-4C0.75 4×0.75 0.5 1.2 6.7 84
