IEC60092 STANDARD MariSig Fire Resistant Instrumentation & Control Cables

BI (i)/ BU(i) (MRE-M2XH PiMF/TiMF) 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Individual Screened Fire Resistant Instrumentation & Control Cables (Multipair/Multitriple)

MRE-M2XH PiMF/TiMF 150/250V IEC60092 STANDARD Cables

Application

These BI (i)/ BU(i) (MRE-M2XH PiMF/TiMF) IEC60092 STANDARD Offshore & Marine cables are used on board of ships in all locations for fixed installations not subject to mechanical risk complying with IEC standards 60092-352 in safety circuit, where fire resistance is required. These cables are fire resistant, flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.

Standards

IEC 60092-350/360/376
IEC 60331-21
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

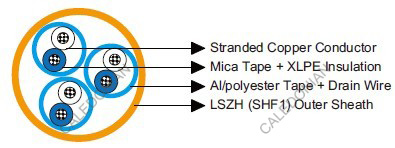

Construction

Conductors: Class 2 stranded copper conductor.
Insulation: Mica tape + XLPE.
Cabling Element: Pair/Triple.
Individual Screen: Al/polyester tape.
Drain Wire: Tinned copper wire.
Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.

Core Identification

Pair: White/blue with printed pair number and core number.
Triple: White/blue/red with printed triple number.

Mechanical and Thermal Properties

Bending Radius for Fixed Installations: 6×OD (OD>25mm); 4×OD (OD ≤25mm)
Temperature Range: -30℃ ~ +80℃

Dimensions and Weight

Part No. Construction
No. of elements×No. of cores in element×Cross
section(mm²)
Nominal Insulation Thickness mm Nominal Sheath Thickness mm Nominal Overall
Diameter mm
Nominal Weight kg/km
MRE-M2XH PiMF-1P0.75 1×2×0.75 0.5 1.0 7.9 80
MRE-M2XH PiMF-2P0.75 2×2×0.75 0.5 1.2 12.4 170
MRE-M2XH PiMF-3P0.75 3×2×0.75 0.5 1.2 13.2 210
MRE-M2XH PiMF-4P0.75 4×2×0.75 0.5 1.3 14.3 260
MRE-M2XH PiMF-5P0.75 5×2×0.75 0.5 1.3 16.0 320
MRE-M2XH PiMF-6P0.75 6×2×0.75 0.5 1.4 17.4 380
MRE-M2XH PiMF-7P0.75 7×2×0.75 0.5 1.4 17.4 410
MRE-M2XH PiMF-8P0.75 8×2×0.75 0.5 1.4 18.5 460
MRE-M2XH PiMF-10P0.75 10×2×0.75 0.5 1.5 21.0 570
MRE-M2XH PiMF-12P0.75 12×2×0.75 0.5 1.5 21.8 650
MRE-M2XH PiMF-14P0.75 14×2×0.75 0.5 1.6 22.9 740
MRE-M2XH PiMF-16P0.75 16×2×0.75 0.5 1.6 24.6 840
MRE-M2XH PiMF-19P0.75 19×2×0.75 0.5 1.7 26.5 980
MRE-M2XH PiMF-20P0.75 20×2×0.75 0.5 1.7 26.5 1010
MRE-M2XH PiMF-24P0.75 24×2×0.75 0.5 1.9 30.6 1260
MRE-M2XH PiMF-30P0.75 30×2×0.75 0.5 2.0 33.4 1530
MRE-M2XH PiMF-37P0.75 37×2×0.75 0.5 2.1 35.9 1830
MRE-M2XH PiMF-1P1.0 1×2×1.0 0.5 1.0 8.3 90
MRE-M2XH PiMF-2P1.0 2×2×1.0 0.5 1.2 13.1 200
MRE-M2XH PiMF-3P1.0 3×2×1.0 0.5 1.3 14.2 250
MRE-M2XH PiMF-4P1.0 4×2×1.0 0.5 1.3 15.1 310
MRE-M2XH PiMF-5P1.0 5×2×1.0 0.5 1.4 17.1 380
MRE-M2XH PiMF-6P1.0 6×2×1.0 0.5 1.4 18.4 440
MRE-M2XH PiMF-7P1.0 7×2×1.0 0.5 1.4 18.4 480
MRE-M2XH PiMF-8P1.0 8×2×1.0 0.5 1.5 19.8 550
MRE-M2XH PiMF-10P1.0 10×2×1.0 0.5 1.6 22.4 690
MRE-M2XH PiMF-12P1.0 12×2×1.0 0.5 1.6 23.3 780
MRE-M2XH PiMF-14P1.0 14×2×1.0 0.5 1.6 24.2 880
MRE-M2XH PiMF-16P1.0 16×2×1.0 0.5 1.7 26.3 1020
MRE-M2XH PiMF-19P1.0 19×2×1.0 0.5 1.8 28.3 1190
MRE-M2XH PiMF-20P1.0 20×2×1.0 0.5 1.8 28.3 1230
MRE-M2XH PiMF-24P1.0 24×2×1.0 0.5 1.9 32.5 1510
MRE-M2XH PiMF-30P1.0 30×2×1.0 0.5 2.0 35.4 1840
MRE-M2XH PiMF-37P1.0 37×2×1.0 0.5 2.1 38.1 2210
MRE-M2XH TiMF-1T0.75 1×3×0.75 0.5 1.0 8.3 100
MRE-M2XH TiMF-2T0.75 2×3×0.75 0.5 1.2 13.5 210
MRE-M2XH TiMF-3T0.75 3×3×0.75 0.5 1.3 14.5 270
MRE-M2XH TiMF-4T0.75 4×3×0.75 0.5 1.3 16.0 330
MRE-M2XH TiMF-5T0.75 5×3×0.75 0.5 1.4 17.9 410
MRE-M2XH TiMF-6T0.75 6×3×0.75 0.5 1.5 20.3 500
MRE-M2XH TiMF-7T0.75 7×3×0.75 0.5 1.5 20.3 540
MRE-M2XH TiMF-8T0.75 8×3×0.75 0.5 1.5 21.8 620
MRE-M2XH TiMF-10T0.75 10×3×0.75 0.5 1.7 25.0 780
MRE-M2XH TiMF-12T0.75 12×3×0.75 0.5 1.7 26.4 900
MRE-M2XH TiMF-14T0.75 14×3×0.75 0.5 1.8 27.7 1020
MRE-M2XH TiMF-16T0.75 16×3×0.75 0.5 1.8 29.5 1160
MRE-M2XH TiMF-19T0.75 19×3×0.75 0.5 1.9 32.0 1360
MRE-M2XH TiMF-20T0.75 20×3×0.75 0.5 1.9 32.5 1420
MRE-M2XH TiMF-24T0.75 24×3×0.75 0.5 2.1 35.7 1700
MRE-M2XH TiMF-30T0.75 30×3×0.75 0.5 2.2 39.6 2100
MRE-M2XH TiMF-32T0.75 32×3×0.75 0.5 2.3 41.2 2250
MRE-M2XH TiMF-1T1.0 1×3×1.0 0.5 1.1 8.9 120
MRE-M2XH TiMF-2T1.0 2×3×1.0 0.5 1.3 14.4 250
MRE-M2XH TiMF-3T1.0 3×3×1.0 0.5 1.3 15.4 310
MRE-M2XH TiMF-4T1.0 4×3×1.0 0.5 1.4 17.1 400
MRE-M2XH TiMF-5T1.0 5×3×1.0 0.5 1.4 18.9 480
MRE-M2XH TiMF-6T1.0 6×3×1.0 0.5 1.5 21.5 590
MRE-M2XH TiMF-7T1.0 7×3×1.0 0.5 1.5 21.5 640
MRE-M2XH TiMF-8T1.0 8×3×1.0 0.5 1.6 23.3 740
MRE-M2XH TiMF-10T1.0 10×3×1.0 0.5 1.7 26.5 930
MRE-M2XH TiMF-12T1.0 12×3×1.0 0.5 1.8 28.2 1090
MRE-M2XH TiMF-14T1.0 14×3×1.0 0.5 1.8 29.4 1220
MRE-M2XH TiMF-16T1.0 16×3×1.0 0.5 1.9 31.5 1400
MRE-M2XH TiMF-19T1.0 19×3×1.0 0.5 2.0 34.1 1640
MRE-M2XH TiMF-20T1.0 20×3×1.0 0.5 2.0 34.7 1710
MRE-M2XH TiMF-24T1.0 24×3×1.0 0.5 2.1 37.9 2040
MRE-M2XH TiMF-30T1.0 30×3×1.0 0.5 2.3 42.3 2540
MRE-M2XH TiMF-32T1.0 32×3×1.0 0.5 2.4 44.0 2720
