BFOI (i)/ BFOU (i) (MRE-M2XCH PiMF/TiMF) 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Individual Screened & Armoured Fire Resistant Instrumentation & Control Cables (Multipair/Multitriple)

MRE-M2XCH PiMF/TiMF 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Individual Screened & Armoured Fire Resistant Instrumentation & Control Cables (Multipair/Multitriple)

Application

These BFOI (i)/ BFOU (i) (MRE-M2XCH PiMF/TiMF) 150/250V IEC60092 STANDARD Offshore & Marine cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352 in safety circuit, where fire resistance is required. These cables are fire resistant, flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.

Standards

 IEC 60092-350/360/376
 IEC 60331-21
 IEC 60332-1
 IEC 60332-3-22
 IEC 60754-1/2
 IEC 61034

Approvals:

BV Certification(33493/B0 BV)

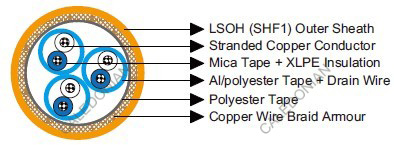

Construction

 Conductors: Class 2 stranded copper conductor.
 Insulation: Mica tape + XLPE.
 Cabling Element: Pair/Triple.
 Individual Screen: Al/polyester tape.
 Drain Wire: Tinned copper wire.
 Inner Covering: Lapped polyester tape.
 Armour: Copper wire braid.
 Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.

Core Identification

Pair: White/blue with printed pair number and core number.
Triple: White/blue/red with printed triple number.

Mechanical and Thermal Properties

Bending Radius for Fixed Installations: 6×OD
Temperature Range: -30℃ ~ +80℃

Dimensions and Weight

Part No. Construction
No. of elements×No. of cores in element×Cross
section(mm²)
Nominal Insulation Thickness mm Nominal Sheath Thickness mm Nominal Overall Diameter mm Nominal Weight kg/km
MRE-M2XCH PiMF-1P0.75 1×2×0.75 0.5 1.3 9.3 130
MRE-M2XCH PiMF-2P0.75 2×2×0.75 0.5 1.4 13.6 230
MRE-M2XCH PiMF-3P0.75 3×2×0.75 0.5 1.8 15.1 320
MRE-M2XCH PiMF-4P0.75 4×2×0.75 0.5 1.8 16.0 370
MRE-M2XCH PiMF-5P0.75 5×2×0.75 0.5 1.9 17.9 450
MRE-M2XCH PiMF-6P0.75 6×2×0.75 0.5 1.9 19.1 510
MRE-M2XCH PiMF-7P0.75 7×2×0.75 0.5 1.9 19.1 540
MRE-M2XCH PiMF-8P0.75 8×2×0.75 0.5 2.0 20.4 610
MRE-M2XCH PiMF-10P0.75 10×2×0.75 0.5 2.1 22.9 740
MRE-M2XCH PiMF-12P0.75 12×2×0.75 0.5 2.1 23.7 830
MRE-M2XCH PiMF-14P0.75 14×2×0.75 0.5 2.1 24.6 910
MRE-M2XCH PiMF-16P0.75 16×2×0.75 0.5 2.2 26.5 1040
MRE-M2XCH PiMF-19P0.75 19×2×0.75 0.5 2.3 28.4 1200
MRE-M2XCH PiMF-20P0.75 20×2×0.75 0.5 2.3 28.4 1230
MRE-M2XCH PiMF-24P0.75 24×2×0.75 0.5 2.4 32.3 1490
MRE-M2XCH PiMF-30P0.75 30×2×0.75 0.5 2.5 35.1 1790
MRE-M2XCH PiMF-37P0.75 37×2×0.75 0.5 2.8 38.1 2200
MRE-M2XCH PiMF-1P1.0 1×2×1.0 0.5 1.3 9.7 140
MRE-M2XCH PiMF-2P1.0 2×2×1.0 0.5 1.8 15.0 300
MRE-M2XCH PiMF-3P1.0 3×2×1.0 0.5 1.8 15.9 360
MRE-M2XCH PiMF-4P1.0 4×2×1.0 0.5 1.9 17.0 430
MRE-M2XCH PiMF-5P1.0 5×2×1.0 0.5 1.9 18.8 510
MRE-M2XCH PiMF-6P1.0 6×2×1.0 0.5 2.0 20.3 600
MRE-M2XCH PiMF-7P1.0 7×2×1.0 0.5 2.0 20.3 630
MRE-M2XCH PiMF-8P1.0 8×2×1.0 0.5 2.0 21.5 700
MRE-M2XCH PiMF-10P1.0 10×2×1.0 0.5 2.1 24.1 860
MRE-M2XCH PiMF-12P1.0 12×2×1.0 0.5 2.2 25.2 980
MRE-M2XCH PiMF-14P1.0 14×2×1.0 0.5 2.2 26.1 1080
MRE-M2XCH PiMF-16P1.0 16×2×1.0 0.5 2.3 28.2 1230
MRE-M2XCH PiMF-19P1.0 19×2×1.0 0.5 2.3 30.0 1410
MRE-M2XCH PiMF-20P1.0 20×2×1.0 0.5 2.3 30.0 1450
MRE-M2XCH PiMF-24P1.0 24×2×1.0 0.5 2.5 34.4 1780
MRE-M2XCH PiMF-30P1.0 30×2×1.0 0.5 2.8 37.8 2220
MRE-M2XCH PiMF-37P1.0 37×2×1.0 0.5 2.9 40.5 2620
MRE-M2XCH PiMF-1P1.5 1×2×1.5 0.6 1.3 10.7 170
MRE-M2XCH PiMF-2P1.5 2×2×1.5 0.6 1.9 16.9 380
MRE-M2XCH PiMF-3P1.5 3×2×1.5 0.6 1.9 17.9 450
MRE-M2XCH PiMF-4P1.5 4×2×1.5 0.6 1.9 19.0 530
MRE-M2XCH PiMF-5P1.5 5×2×1.5 0.6 2.0 21.3 650
MRE-M2XCH PiMF-6P1.5 6×2×1.5 0.6 2.1 23.0 750
MRE-M2XCH PiMF-7P1.5 7×2×1.5 0.6 2.1 23.0 800
MRE-M2XCH PiMF-8P1.5 8×2×1.5 0.6 2.1 24.4 890
MRE-M2XCH PiMF-10P1.5 10×2×1.5 0.6 2.3 27.6 1110
MRE-M2XCH PiMF-12P1.5 12×2×1.5 0.6 2.3 28.7 1250
MRE-M2XCH PiMF-14P1.5 14×2×1.5 0.6 2.3 29.7 1380
MRE-M2XCH PiMF-16P1.5 16×2×1.5 0.6 2.4 32.1 1580
MRE-M2XCH PiMF-19P1.5 19×2×1.5 0.6 2.5 34.4 1820
MRE-M2XCH PiMF-20P1.5 20×2×1.5 0.6 2.5 34.4 1870
MRE-M2XCH PiMF-24P1.5 24×2×1.5 0.6 2.9 39.9 2400
MRE-M2XCH PiMF-30P1.5 30×2×1.5 0.6 3.0 43.3 2870
MRE-M2XCH PiMF-37P1.5 37×2×1.5 0.6 3.2 46.6 3410
MRE-M2XCH TiMF-1T0.75 1×3×0.75 0.5 1.3 9.7 140
MRE-M2XCH TiMF-2T0.75 2×3×0.75 0.5 1.8 15.4 320
MRE-M2XCH TiMF-3T0.75 3×3×0.75 0.5 1.8 16.2 380
MRE-M2XCH TiMF-4T0.75 4×3×0.75 0.5 1.9 17.9 460
MRE-M2XCH TiMF-5T0.75 5×3×0.75 0.5 2.0 19.8 560
MRE-M2XCH TiMF-6T0.75 6×3×0.75 0.5 2.1 22.2 670
MRE-M2XCH TiMF-7T0.75 7×3×0.75 0.5 2.1 22.2 710
MRE-M2XCH TiMF-8T0.75 8×3×0.75 0.5 2.1 23.7 800
MRE-M2XCH TiMF-10T0.75 10×3×0.75 0.5 2.2 26.7 980
MRE-M2XCH TiMF-12T0.75 12×3×0.75 0.5 2.3 28.3 1120
MRE-M2XCH TiMF-14T0.75 14×3×0.75 0.5 2.3 29.4 1240
MRE-M2XCH TiMF-16T0.75 16×3×0.75 0.5 2.4 31.4 1400
MRE-M2XCH TiMF-19T0.75 19×3×0.75 0.5 2.5 33.9 1620
MRE-M2XCH TiMF-20T0.75 20×3×0.75 0.5 2.5 34.4 1680
MRE-M2XCH TiMF-24T0.75 24×3×0.75 0.5 2.8 37.9 2070
MRE-M2XCH TiMF-30T0.75 30×3×0.75 0.5 3.0 42.0 2520
MRE-M2XCH TiMF-32T0.75 32×3×0.75 0.5 3.0 43.4 2670
MRE-M2XCH TiMF-1T1.0 1×3×1.0 0.5 1.3 10.1 160
MRE-M2XCH TiMF-2T1.0 2×3×1.0 0.5 1.8 16.1 360
MRE-M2XCH TiMF-3T1.0 3×3×1.0 0.5 1.9 17.3 440
MRE-M2XCH TiMF-4T1.0 4×3×1.0 0.5 1.9 18.8 530
MRE-M2XCH TiMF-5T1.0 5×3×1.0 0.5 2.0 20.8 640
MRE-M2XCH TiMF-6T1.0 6×3×1.0 0.5 2.1 23.4 770
MRE-M2XCH TiMF-7T1.0 7×3×1.0 0.5 2.1 23.4 820
MRE-M2XCH TiMF-8T1.0 8×3×1.0 0.5 2.2 25.2 930
MRE-M2XCH TiMF-10T1.0 10×3×1.0 0.5 2.3 28.4 1150
MRE-M2XCH TiMF-12T1.0 12×3×1.0 0.5 2.3 29.9 1310
MRE-M2XCH TiMF-14T1.0 14×3×1.0 0.5 2.4 31.3 1470
MRE-M2XCH TiMF-16T1.0 16×3×1.0 0.5 2.5 33.4 1660
MRE-M2XCH TiMF-19T1.0 19×3×1.0 0.5 2.8 36.5 2010
MRE-M2XCH TiMF-20T1.0 20×3×1.0 0.5 2.8 37.1 2090
MRE-M2XCH TiMF-24T1.0 24×3×1.0 0.5 2.9 40.3 2450
MRE-M2XCH TiMF-30T1.0 30×3×1.0 0.5 3.1 44.7 3000
MRE-M2XCH TiMF-32T1.0 32×3×1.0 0.5 3.1 46.2 3180
MRE-M2XCH TiMF-1T1.5 1×3×1.5 0.6 1.4 11.4 200
MRE-M2XCH TiMF-2T1.5 2×3×1.5 0.6 1.9 18.2 450
MRE-M2XCH TiMF-3T1.5 3×3×1.5 0.6 2.0 19.5 560
MRE-M2XCH TiMF-4T1.5 4×3×1.5 0.6 2.0 21.3 670
MRE-M2XCH TiMF-5T1.5 5×3×1.5 0.6 2.1 23.6 820
MRE-M2XCH TiMF-6T1.5 6×3×1.5 0.6 2.2 26.6 990
MRE-M2XCH TiMF-7T1.5 7×3×1.5 0.6 2.2 26.6 1060
MRE-M2XCH TiMF-8T1.5 8×3×1.5 0.6 2.3 28.6 1200
MRE-M2XCH TiMF-10T1.5 10×3×1.5 0.6 2.4 32.3 1480
MRE-M2XCH TiMF-12T1.5 12×3×1.5 0.6 2.5 34.3 1700
MRE-M2XCH TiMF-14T1.5 14×3×1.5 0.6 2.6 35.9 1920
MRE-M2XCH TiMF-16T1.5 16×3×1.5 0.6 2.9 38.8 2260
MRE-M2XCH TiMF-19T1.5 19×3×1.5 0.6 3.0 41.8 2620
MRE-M2XCH TiMF-20T1.5 20×3×1.5 0.6 3.0 42.5 2720
MRE-M2XCH TiMF-24T1.5 24×3×1.5 0.6 3.1 46.2 3200
MRE-M2XCH TiMF-30T1.5 30×3×1.5 0.6 3.3 51.2 3910
MRE-M2XCH TiMF-32T1.5 32×3×1.5 0.6 3.4 53.2 4180
