IEC60092 STANDARD MariSig Fire Resistant Instrumentation & Control Cables

BI (c)/ BU(c) (MRE-M2X(St)H) 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Overall Screened Fire Resistant Instrumentation & Control Cables (Multipair/Multitriple)

MRE-M2X(St)H 150/250V IEC60092 STANDARD Cables

Application

These BI (c)/ BU(c) (MRE-M2X(St)H) 150/250V IEC60092 STANDARD Offshore & Marine cables are used on board of ships in all locations for fixed installations not subject to mechanical risk complying with IEC standards 60092-352 in safety circuit, where fire resistance is required. These cables are fire resistant, flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.

Standards

IEC 60092-350/360/376
IEC 60331-21
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

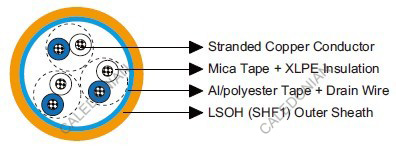

Construction

Conductors: Class 2 stranded copper conductor.
Insulation: Mica tape + XLPE.
Cabling Element: Pair/Triple.
Overall Screen: Al/polyester tape.
Drain Wire: Tinned copper wire.
Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.

Core Identification

Pair: White/blue with printed pair number and core number.
Triple: White/blue/red with printed triple number.

Mechanical and Thermal Properties

Bending Radius for Fixed Installations: 6×OD (OD>25mm); 4×OD (OD ≤25mm)
Temperature Range: -30℃ ~ +80℃

Dimensions and Weight

Part No. Construction
No. of elements×No. of cores in element×Cross
section(mm²)
Nominal Insulation Thickness mm Nominal Sheath Thickness mm Nominal Overall
Diameter mm
Nominal Weight kg/km
MRE-M2X(St)H-1P0.75 1×2×0.75 0.5 1.0 8.1 70
MRE-M2X(St)H-2P0.75 2×2×0.75* 0.5 1.1 9.5 110
MRE-M2X(St)H-3P0.75 3×2×0.75 0.5 1.2 13.3 170
MRE-M2X(St)H-4P0.75 4×2×0.75 0.5 1.3 14.3 210
MRE-M2X(St)H-7P0.75 7×2×0.75 0.5 1.4 17.3 320
MRE-M2X(St)H-8P0.75 8×2×0.75 0.5 1.4 18.4 360
MRE-M2X(St)H-10P0.75 10×2×0.75 0.5 1.5 20.9 430
MRE-M2X(St)H-12P07.5 12×2×0.75 0.5 1.5 21.7 490
MRE-M2X(St)H-14P0.75 14×2×0.75 0.5 1.6 22.7 560
MRE-M2X(St)H-16P0.75 16×2×0.75 0.5 1.6 24.4 630
MRE-M2X(St)H-19P0.75 19×2×0.75 0.5 1.7 25.7 730
MRE-M2X(St)H-24P0.75 24×2×0.75 0.5 1.8 29.3 910
MRE-M2X(St)H-30P0.75 30×2×0.75 0.5 2.0 33.1 1140
MRE-M2X(St)H-32P0.75 32×2×0.75 0.5 2.0 33.6 1190
MRE-M2X(St)H-37P0.75 37×2×0.75 0.5 2.0 35.3 1340
MRE-M2X(St)H-1P1.0 1×2×1.0 0.5 1.1 8.7 90
MRE-M2X(St)H-2P1.0 2×2×1.0* 0.5 1.1 9.9 130
MRE-M2X(St)H-3P1.0 3×2×1.0 0.5 1.3 14.2 200
MRE-M2X(St)H-4P1.0 4×2×1.0 0.5 1.3 15.1 240
MRE-M2X(St)H-7P1.0 7×2×1.0 0.5 1.4 18.3 370
MRE-M2X(St)H-8P1.0 8×2×1.0 0.5 1.5 19.7 430
MRE-M2X(St)H-10P1.0 10×2×1.0 0.5 1.6 22.3 520
MRE-M2X(St)H-12P1.0 12×2×1.0 0.5 1.6 23.2 590
MRE-M2X(St)H-14P1.0 14×2×1.0 0.5 1.6 24.1 660
MRE-M2X(St)H-16P1.0 16×2×1.0 0.5 1.7 26.1 760
MRE-M2X(St)H-19P1.0 19×2×1.0 0.5 1.7 27.3 860
MRE-M2X(St)H-24P1.0 24×2×1.0 0.5 1.9 31.3 1100
MRE-M2X(St)H-30P1.0 30×2×1.0 0.5 2.0 35.1 1350
MRE-M2X(St)H-32P1.0 32×2×1.0 0.5 2.1 35.9 1440
MRE-M2X(St)H-37P1.0 37×2×1.0 0.5 2.1 37.7 1620
MRE-M2X(St)H-1P1.5 1×2×1.5 0.6 1.1 9.5 100
MRE-M2X(St)H-2P1.5 2×2×1.5* 0.6 1.1 10.9 160
MRE-M2X(St)H-3P1.5 3×2×1.5 0.6 1.3 15.7 250
MRE-M2X(St)H-4P1.5 4×2×1.5 0.6 1.4 16.9 310
MRE-M2X(St)H-7P1.5 7×2×1.5 0.6 1.5 20.5 490
MRE-M2X(St)H-8P1.5 8×2×1.5 0.6 1.5 21.9 550
MRE-M2X(St)H-10P1.5 10×2×1.5 0.6 1.7 25.0 670
MRE-M2X(St)H-12P1.5 12×2×1.5 0.6 1.7 26.0 770
MRE-M2X(St)H-14P1.5 14×2×1.5 0.6 1.7 27.0 870
MRE-M2X(St)H-16P1.5 16×2×1.5 0.6 1.8 29.3 990
MRE-M2X(St)H-19P1.5 19×2×1.5 0.6 1.9 30.8 1150
MRE-M2X(St)H-24P1.5 24×2×1.5 0.6 2.0 35.1 1440
MRE-M2X(St)H-30P1.5 30×2×1.5 0.6 2.2 39.6 1790
MRE-M2X(St)H-32P1.5 32×2×1.5 0.6 2.2 40.3 1890
MRE-M2X(St)H-37P1.5 37×2×1.5 0.6 2.3 42.5 2160
MRE-M2X(St)H-1T0.75 1×3×0.75 0.5 1.1 8.7 90
MRE-M2X(St)H-2T0.75 2×3×0.75 0.5 1.2 13.5 180
MRE-M2X(St)H-3T0.75 3×3×0.75 0.5 1.3 14.5 230
MRE-M2X(St)H-4T0.75 4×3×0.75 0.5 1.3 15.9 280
MRE-M2X(St)H-7T0.75 7×3×0.75 0.5 1.5 20.2 460
MRE-M2X(St)H-8T0.75 8×3×0.75 0.5 1.5 21.6 510
MRE-M2X(St)H-10T0.75 10×3×0.75 0.5 1.6 24.6 620
MRE-M2X(St)H-12T07.5 12×3×0.75 0.5 1.7 26.2 720
MRE-M2X(St)H-14T0.75 14×3×0.75 0.5 1.7 27.3 810
MRE-M2X(St)H-16T0.75 16×3×0.75 0.5 1.8 29.2 920
MRE-M2X(St)H-19T0.75 19×3×0.75 0.5 1.9 31.6 1080
MRE-M2X(St)H-24T0.75 24×3×0.75 0.5 2.0 35.1 1340
MRE-M2X(St)H-30T0.75 30×3×0.75 0.5 2.2 39.1 1660
MRE-M2X(St)H-32T0.75 32×3×0.75 0.5 2.2 40.5 1760
MRE-M2X(St)H-37T0.75 37×3×0.75 0.5 2.3 42.7 2000
MRE-M2X(St)H-1T1.0 1×3×1.0 0.5 1.1 9.2 110
MRE-M2X(St)H-2T1.0 2×3×1.0 0.5 1.3 14.6 210
MRE-M2X(St)H-3T1.0 3×3×1.0 0.5 1.3 15.5 270
MRE-M2X(St)H-4T1.0 4×3×1.0 0.5 1.4 17.2 340
MRE-M2X(St)H-7T1.0 7×3×1.0 0.5 1.5 21.6 540
MRE-M2X(St)H-8T1.0 8×3×1.0 0.5 1.6 23.3 620
MRE-M2X(St)H-10T1.0 10×3×1.0 0.5 1.7 26.5 740
MRE-M2X(St)H-12T1.0 12×3×1.0 0.5 1.8 28.2 870
MRE-M2X(St)H-14T1.0 14×3×1.0 0.5 1.8 29.4 980
MRE-M2X(St)H-16T1.0 16×3×1.0 0.5 1.9 31.4 1110
MRE-M2X(St)H-19T1.0 19×3×1.0 0.5 2.0 34.1 1310
MRE-M2X(St)H-24T1.0 24×3×1.0 0.5 2.1 37.9 1620
MRE-M2X(St)H-30T1.0 30×3×1.0 0.5 2.3 42.2 2010
MRE-M2X(St)H-32T1.0 32×3×1.0 0.5 2.4 43.9 2150
MRE-M2X(St)H-37T1.0 37×3×1.0 0.5 2.4 46.0 2430
MRE-M2X(St)H-1T1.5 1×3×1.5 0.6 1.1 10.0 130
MRE-M2X(St)H-2T1.5 2×3×1.5 0.6 1.3 16.0 260
MRE-M2X(St)H-3T1.5 3×3×1.5 0.6 1.4 17.2 340
MRE-M2X(St)H-4T1.5 4×3×1.5 0.6 1.4 18.9 430
MRE-M2X(St)H-7T1.5 7×3×1.5 0.6 1.6 24.0 700
MRE-M2X(St)H-8T1.5 8×3×1.5 0.6 1.7 25.9 800
MRE-M2X(St)H-10T1.5 10×3×1.5 0.6 1.8 29.5 970
MRE-M2X(St)H-12T1.5 12×3×1.5 0.6 1.9 31.4 1130
MRE-M2X(St)H-14T1.5 14×3×1.5 0.6 2.0 33.0 1300
MRE-M2X(St)H-16T1.5 16×3×1.5 0.6 2.0 35.0 1460
MRE-M2X(St)H-19T1.5 19×3×1.5 0.6 2.1 37.9 1710
MRE-M2X(St)H-24T1.5 24×3×1.5 0.6 2.3 42.4 2140
MRE-M2X(St)H-30T1.5 30×3×1.5 0.6 2.5 47.2 2660
MRE-M2X(St)H-32T1.5 32×3×1.5 0.6 2.5 48.9 2820
MRE-M2X(St)H-37T1.5 37×3×1.5 0.6 2.6 51.4 3210

*: 2 pairs are assembled as a quad.
