IEC60092 STANDARD MariSig Flame Retardant Instrumentation & Control Cables

TIOI/ TIOU (MRE-2XCH) 150/250V XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Instrumentation & Control Cables (Multicore)

MRE-2XCH 150/250V XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Instrumentation & Control Cables (Multicore)

Application

These TIOI/ TIOU (MRE-2XCH) 150/250V IEC60092 STANDARD Offshore & Marine armoured cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352. These cables are flame retardant, low smoke& halogen free, suitable for installations on passenger ships, as on other commercial vessels.

Standards

 IEC 60092-350/360/376
 IEC 60332-1
 IEC 60332-3-22
 IEC 60754-1/2
 IEC 61034

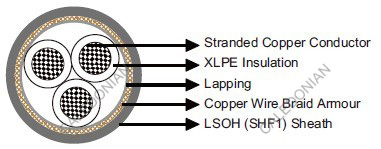

Construction

 Conductors: Class 2 stranded copper conductor.
 Insulation: XLPE.
 Inner Covering: Lapping.
 Armour: Copper wire braid.
 Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.

Core Identification

White with printed number.

Mechanical and Thermal Properties

Bending Radius for Fixed Installations: 6×OD
Temperature Range: -30℃ ~ +80℃

Dimensions and Weight

Part No. Construction
No. of cores×Cross
section(mm²) 		Nominal Insulation
Thickness mm 		Nominal Sheath Thickness mm Nominal Overall
Diameter mm 		Nominal Weight kg/km
MRE-2XCH-2C0.75 2×0.75 0.5 1.2 7.2 80
MRE-2XCH-3C0.75 3×0.75 0.5 1.2 7.5 90
MRE-2XCH-5C0.75 5×0.75 0.5 1.4 8.9 130
MRE-2XCH-7C0.75 7×0.75 0.5 1.6 9.8 150
MRE-2XCH-12C0.75 12×0.75 0.5 1.7 12.4 230
MRE-2XCH-19C0.75 19×0.75 0.5 1.9 14.6 320
MRE-2XCH-27C0.75 27×0.75 0.5 2.1 17.3 460
MRE-2XCH-37C0.75 37×0.75 0.5 2.2 19.3 590
MRE-2XCH-2C1.0 2×1.0 0.5 1.4 7.9 90
MRE-2XCH-3C1.0 3×1.0 0.5 1.4 8.3 100
MRE-2XCH-5C1.0 5×1.0 0.5 1.5 9.7 150
MRE-2XCH-7C1.0 7×1.0 0.5 1.6 10.4 180
MRE-2XCH-12C1.0 12×1.0 0.5 1.8 13.2 270
MRE-2XCH-19C1.0 19×1.0 0.5 2.1 15.9 420
MRE-2XCH-27C1.0 27×1.0 0.5 2.2 18.4 560
MRE-2XCH-37C1.0 37×1.0 0.5 2.4 20.7 710
