IEC60092 STANDARD MariSig Flame Retardant Instrumentation & Control Cables

TIOI (c)/ TIOU(c) (MRE-2X(St)HCH) 150/250V XLPE Insulated, LSOH (SHF1) Sheathed, Overall Screened & Armoured Flame Retardant Instrumentation & Control Cables (Multipair/Multitriple)

MRE-2X(St)HCH 150/250V XLPE Insulated, LSOH (SHF1) Sheathed, Overall Screened & Armoured Flame Retardant Instrumentation & Control Cables (Multipair/Multitriple)

Application

These TIOI (c)/ TIOU(c) (MRE-2X(St)HCH) 150/250V IEC60092 STANDARD Offshore & Marine armoured cables are used on board of ships in all locations for fixed installations where cable protection is required. These cables are flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.

Standards

 IEC 60092-350/360/376
 IEC 60332-1
 IEC 60332-3-22
 IEC 60754-1/2
 IEC 61034

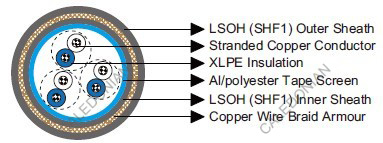

Construction

 Conductors: Class 2 stranded copper conductor.
 Insulation: XLPE.
 Cabling Element: Pair/Triple.
 Overall Screen: Al/polyester tape.
 Inner Sheath: LSOH (SHF1).
 Armour: Copper wire braid.
 Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.

Core Identification

Pair: White/blue with printed pair number and core number.
Triple: White/blue/red with printed triple number.

Mechanical and Thermal Properties

Bending Radius for Fixed Installations: 6×OD
Temperature Range: -30℃ ~ +80℃

Dimensions and Weight

Part No. Construction
No. of elements×No.
of cores in
element×Cross
section(mm²)
Nominal Insulation Thickness mm Nominal Sheath Thickness
mm
Nominal Overall Diameter mm Nominal Weight kg/km
Inner Outer
MRE-2X(St)HCH-1P0.75 1×2×0.75 0.5 1.0 0.8 10.3 150
MRE-2X(St)HCH-2P0.75 2×2×0.75* 0.5 1.0 0.8 11.2 190
MRE-2X(St)HCH-3P0.75 3×2×0.75 0.5 1.1 0.9 14.2 270
MRE-2X(St)HCH-4P0.75 4×2×0.75 0.5 1.2 0.9 15.1 310
MRE-2X(St)HCH-7P0.75 7×2×0.75 0.5 1.2 1.0 17.3 410
MRE-2X(St)HCH-8P0.75 8×2×0.75 0.5 1.3 1.0 18.4 460
MRE-2X(St)HCH-10P0.75 10×2×0.75 0.5 1.4 1.1 20.5 550
MRE-2X(St)HCH-12P07.5 12×2×0.75 0.5 1.4 1.1 21.2 600
MRE-2X(St)HCH-14P0.75 14×2×0.75 0.5 1.4 1.1 21.9 650
MRE-2X(St)HCH-16P0.75 16×2×0.75 0.5 1.5 1.1 23.4 730
MRE-2X(St)HCH-19P0.75 19×2×0.75 0.5 1.5 1.1 24.3 810
MRE-2X(St)HCH-24P0.75 24×2×0.75 0.5 1.6 1.2 27.3 980
MRE-2X(St)HCH-30P0.75 30×2×0.75 0.5 1.7 1.3 30.3 1190
MRE-2X(St)HCH-32P0.75 32×2×0.75 0.5 1.7 1.3 30.8 1240
MRE-2X(St)HCH-37P0.75 37×2×0.75 0.5 1.8 1.3 32.3 1380
MRE-2X(St)HCH-1P1.0 1×2×1.0 0.5 1.0 0.8 10.7 170
MRE-2X(St)HCH-2P1.0 2×2×1.0* 0.5 1.0 0.8 11.7 210
MRE-2X(St)HCH-3P1.0 3×2×1.0 0.5 1.2 0.9 15.2 310
MRE-2X(St)HCH-4P1.0 4×2×1.0 0.5 1.2 0.9 15.9 350
MRE-2X(St)HCH-7P1.0 7×2×1.0 0.5 1.3 1.0 18.5 480
MRE-2X(St)HCH-8P1.0 8×2×1.0 0.5 1.3 1.0 19.5 530
MRE-2X(St)HCH-10P1.0 10×2×1.0 0.5 1.4 1.1 21.8 630
MRE-2X(St)HCH-12P1.0 12×2×1.0 0.5 1.4 1.1 22.5 700
MRE-2X(St)HCH-14P1.0 14×2×1.0 0.5 1.5 1.1 23.4 770
MRE-2X(St)HCH-16P1.0 16×2×1.0 0.5 1.5 1.2 25.1 860
MRE-2X(St)HCH-19P1.0 19×2×1.0 0.5 1.6 1.2 26.2 970
MRE-2X(St)HCH-24P1.0 24×2×1.0 0.5 1.7 1.3 29.5 1190
MRE-2X(St)HCH-30P1.0 30×2×1.0 0.5 1.8 1.3 32.6 1430
MRE-2X(St)HCH-32P1.0 32×2×1.0 0.5 1.8 1.4 33.3 1500
MRE-2X(St)HCH-37P1.0 37×2×1.0 0.5 1.9 1.4 35.3 1750
MRE-2X(St)HCH-1P1.5 1×2×1.5 0.7 1.1 1.2 11.7 200
MRE-2X(St)HCH-2P1.5 2×2×1.5* 0.7 1.1 1.2 13.1 270
MRE-2X(St)HCH-3P1.5 3×2×1.5 0.7 1.2 1.2 17.0 380
MRE-2X(St)HCH-4P1.5 4×2×1.5 0.7 1.3 1.2 18.1 450
MRE-2X(St)HCH-7P1.5 7×2×1.5 0.7 1.4 1.2 21.4 640
MRE-2X(St)HCH-8P1.5 8×2×1.5 0.7 1.4 1.2 22.6 700
MRE-2X(St)HCH-10P1.5 10×2×1.5 0.7 1.5 1.2 25.3 840
MRE-2X(St)HCH-12P1.5 12×2×1.5 0.7 1.6 1.2 26.4 940
MRE-2X(St)HCH-14P1.5 14×2×1.5 0.7 1.6 1.2 27.2 1030
MRE-2X(St)HCH-16P1.5 16×2×1.5 0.7 1.7 1.3 29.4 1170
MRE-2X(St)HCH-19P1.5 19×2×1.5 0.7 1.7 1.3 30.5 1310
MRE-2X(St)HCH-24P1.5 24×2×1.5 0.7 1.9 1.4 35.0 1700
MRE-2X(St)HCH-30P1.5 30×2×1.5 0.7 2.0 1.5 38.9 2050
MRE-2X(St)HCH-32P1.5 32×2×1.5 0.7 2.0 1.5 39.5 2140
MRE-2X(St)HCH-37P1.5 37×2×1.5 0.7 2.1 1.6 41.6 2410
MRE-2X(St)HCH-1T0.75 1×3×0.75 0.5 1.0 0.8 10.6 170
MRE-2X(St)HCH-2T0.75 2×3×0.75 0.5 1.1 0.9 14.4 280
MRE-2X(St)HCH-3T0.75 3×3×0.75 0.5 1.2 0.9 15.2 320
MRE-2X(St)HCH-4T0.75 4×3×0.75 0.5 1.2 1.0 16.3 380
MRE-2X(St)HCH-7T0.75 7×3×0.75 0.5 1.3 1.0 19.6 540
MRE-2X(St)HCH-8T0.75 8×3×0.75 0.5 1.4 1.1 21.1 610
MRE-2X(St)HCH-10T0.75 10×3×0.75 0.5 1.5 1.1 23.5 720
MRE-2X(St)HCH-12T07.5 12×3×0.75 0.5 1.5 1.2 24.7 810
MRE-2X(St)HCH-14T0.75 14×3×0.75 0.5 1.5 1.2 25.6 890
MRE-2X(St)HCH-16T0.75 16×3×0.75 0.5 1.6 1.2 27.1 990
MRE-2X(St)HCH-19T0.75 19×3×0.75 0.5 1.7 1.3 29.3 1150
MRE-2X(St)HCH-24T0.75 24×3×0.75 0.5 1.8 1.3 32.1 1370
MRE-2X(St)HCH-30T0.75 30×3×0.75 0.5 1.9 1.4 35.7 1730
MRE-2X(St)HCH-32T0.75 32×3×0.75 0.5 1.9 1.4 36.8 1820
MRE-2X(St)HCH-37T0.75 37×3×0.75 0.5 2.0 1.5 38.7 2040
MRE-2X(St)HCH-1T1.0 1×3×1.0 0.5 1.0 0.8 11.1 190
MRE-2X(St)HCH-2T1.0 2×3×1.0 0.5 1.2 0.9 15.5 320
MRE-2X(St)HCH-3T1.0 3×3×1.0 0.5 1.2 1.0 16.2 370
MRE-2X(St)HCH-4T1.0 4×3×1.0 0.5 1.3 1.0 17.6 440
MRE-2X(St)HCH-7T1.0 7×3×1.0 0.5 1.4 1.1 21.4 650
MRE-2X(St)HCH-8T1.0 8×3×1.0 0.5 1.4 1.1 22.6 710
MRE-2X(St)HCH-10T1.0 10×3×1.0 0.5 1.5 1.2 25.4 860
MRE-2X(St)HCH-12T1.0 12×3×1.0 0.5 1.6 1.2 26.8 970
MRE-2X(St)HCH-14T1.0 14×3×1.0 0.5 1.6 1.2 27.8 1070
MRE-2X(St)HCH-16T1.0 16×3×1.0 0.5 1.7 1.3 29.6 1200
MRE-2X(St)HCH-19T1.0 19×3×1.0 0.5 1.8 1.3 31.8 1380
MRE-2X(St)HCH-24T1.0 24×3×1.0 0.5 1.9 1.4 35.4 1750
MRE-2X(St)HCH-30T1.0 30×3×1.0 0.5 2.0 1.5 39.0 2100
MRE-2X(St)HCH-32T1.0 32×3×1.0 0.5 2.0 1.5 40.2 2210
MRE-2X(St)HCH-37T1.0 37×3×1.0 0.5 2.1 1.6 42.3 2490
MRE-2X(St)HCH-1T1.5 1×3×1.5 0.7 1.1 1.2 12.3 230
MRE-2X(St)HCH-2T1.5 2×3×1.5 0.7 1.2 1.2 17.2 390
MRE-2X(St)HCH-3T1.5 3×3×1.5 0.7 1.3 1.2 18.3 470
MRE-2X(St)HCH-4T1.5 4×3×1.5 0.7 1.3 1.2 19.7 560
MRE-2X(St)HCH-7T1.5 7×3×1.5 0.7 1.5 1.2 24.6 860
MRE-2X(St)HCH-8T1.5 8×3×1.5 0.7 1.6 1.2 26.2 960
MRE-2X(St)HCH-10T1.5 10×3×1.5 0.7 1.7 1.3 29.5 1150
MRE-2X(St)HCH-12T1.5 12×3×1.5 0.7 1.7 1.3 30.9 1290
MRE-2X(St)HCH-14T1.5 14×3×1.5 0.7 1.8 1.3 32.3 1450
MRE-2X(St)HCH-16T1.5 16×3×1.5 0.7 1.8 1.4 34.2 1620
MRE-2X(St)HCH-19T1.5 19×3×1.5 0.7 1.9 1.5 37.3 1950
MRE-2X(St)HCH-24T1.5 24×3×1.5 0.7 2.1 1.5 41.1 2370
MRE-2X(St)HCH-30T1.5 30×3×1.5 0.7 2.2 1.6 45.3 2860
MRE-2X(St)HCH-32T1.5 32×3×1.5 0.7 2.3 1.7 47.1 3060
MRE-2X(St)HCH-37T1.5 37×3×1.5 0.7 2.4 1.7 49.3 3420

*: 2 pairs are assembled as a quad.
