IEC60092 STANDARD MariLan Marine Lan Data & Communication Cables
Cat 6 SF/UTP 24AWG 4P/8P
Applications
These Cat6 SF/UTP IEC60092 STANDARD Offshore & Marine cables are manufactured in accordance with IEC 61156-5 requirements, can support all Class E applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for basic voice and data installations up to 250MHz.
Standards
- EN 50288
- ISO 11801
- IEC 61156-5
- IEC 60332-1
- IEC 60754-1/2
- IEC 61034
Approvals
BV Certification（33493/B0 BV）

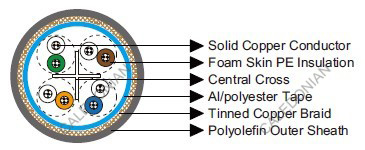

Construction
| Central Cross |
|
| Conductors |
Solid bare copper conductor. |
| Insulation |
Foam skin PE. |
| Twinning |
Two coloured insulated conductors twisted together to form a pair. |
| Overall Screen1 |
Al/polyester tape. |
| Overall Screen2 |
Tinned copper wire braid. |
| Outer Sheath |
Polyolefin. |
Core Identification
| Pair 1 |
White, Blue |
| Pair 2 |
White Orange |
| Pair 3 |
White, Green |
| Pair 4 |
White, Brown |
Electrical Properties
| Minimum Insulation Resistance |
MΩ.km |
1000 |
| Mutual Capacitance |
nF/km |
56 |
| Characteristic Impedance @1-100MHz |
Ω |
100 ± 15 |
| Nominal Velocity of Propagation |
% |
67 |
| Maximum Propagation Delay |
ns/100 m |
537.6 |
| Maximum Delay Skew |
ns/100 m |
45 |
| Coupling Attenuation @30MHz |
dB |
75 |
Nominal Transmission Characteristics @20℃
| F |
Attenuation |
NEXT |
PS-NEXT |
ACR |
ELFEXT |
PS-ELFEXT |
Return Loss |
| MHz |
dB/100m |
dB |
dB |
dB/100m |
dB/100m |
dB/100m |
dB |
| 1 |
2.1 |
80.3 |
77.3 |
78.2 |
71.0 |
68.0 |
21.5 |
| 4 |
3.8 |
71.3 |
68.3 |
67.4 |
59.0 |
56.0 |
24.5 |
| 10 |
6.0 |
65.3 |
62.3 |
59.3 |
51.0 |
48.0 |
26.5 |
| 16 |
7.6 |
62.2 |
59.2 |
54.6 |
46.9 |
43.9 |
26.5 |
| 20 |
8.5 |
60.8 |
57.8 |
52.3 |
45.0 |
42.0 |
26.5 |
| 31.25 |
10.7 |
57.9 |
54.9 |
47.1 |
41.1 |
38.1 |
25.1 |
| 62.50 |
15.5 |
53.4 |
50.4 |
37.9 |
35.1 |
32.1 |
23.0 |
| 100 |
19.9 |
50.3 |
47.3 |
30.4 |
31.0 |
28.0 |
21.6 |
| 155 |
25.3 |
47.4 |
44.4 |
22.1 |
27.2 |
24.2 |
20.3 |
| 200 |
29.1 |
45.8 |
42.8 |
16.6 |
25.0 |
22.0 |
19.5 |
| 250 |
33.0 |
44.3 |
41.3 |
11.3 |
23.0 |
20.0 |
18.8 |
Mechanical and Thermal Properties
| Bending Radius |
8×OD (during installation); |
| |
4×OD (fixed installed) |
| Temperature Range |
-20℃ ~ +60℃ |
Dimensions and Weight
| Part No. |
Construction No. of elements×No. of cores in element×Cross section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| |
mm² |
mm |
mm |
mm |
kg/km |
| MLN-SF/UTPCAT64P24 |
4×2×24AWG |
0.31 |
1.2 |
7.6 |
60 |
| MLN-SF/UTPCAT68P24 |
2×(4×2×24AWG) |
0.31 |
1.2 |
15.2×7.6 |
120 |
