IEC60092 STANDARD MariLan Marine Lan Data & Communication Cables
Cat 6 U/FTP 23AWG

Cat 6 U/FTP 23AWG IEC60092 STANDARD Offshore & Marine Cables

Applications

These Cat6 U/FTP IEC60092 STANDARD Offshore & Marine cables are manufactured in accordance with IEC 61156-5 requirements, can support all Class E applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for basic voice and data installations up to 250MHz.

Standards

  • EN 50288
  • ISO 11801
  • IEC 61156-5
  • IEC 60332-1
  • IEC 60754-1/2
  • IEC 61034

Approvals

BV Certification（33494/B0 BV）

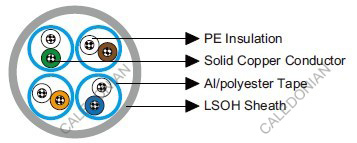

Construction

Conductors Solid bare copper conductor.
Insulation PE.
Twinning Two coloured insulated conductors twisted together to form a pair.
Individual Screen Al/polyester tape.
Outer Sheath LSOH.

Core Identification

Pair 1 White, Blue
Pair 2 White Orange
Pair 3 White, Green
Pair 4 White, Brown

Electrical Properties

Maximum Loop Resistance Ω/km 145
Maximum Resistance Unbalance 　 2%
Minimum Insulation Resistance MΩ.km 1000
Nominal Capacitance @800Hz nF/km 45
Maximum Capacitance Unbalance (pair to ground) pF/km 800
Characteristic Impedance @1-100MHz Ω 100 ± 5
Nominal Velocity of Propagation 　 0.75c
Maximum Propagation Delay ns/100 m 500
Maximum Delay Skew ns/100 m 20
Maximum Transfer Impedance @1MHz mΩ /m 50
Maximum Transfer Impedance @10MHz mΩ /m 100
Maximum Transfer Impedance @30MHz mΩ /m 200
Minimum Coupling Attenuation dB 55

Nominal Transmission Characteristics @20℃

F Attenuation NEXT PS-NEXT ACR PS-ACR ELFEXT PS-ELFEXT Return Loss
MHz dB/100m dB dB dB/100m dB/100m dB/100m dB/100m dB
1 2.0 90 87 88 85 85 82 　
4 3.6 90 87 86 83 85 82 27
10 5.7 90 87 84 81 79 76 30
16 7.2 90 87 83 80 75 72 30
20 8.1 90 87 82 79 73 70 30
31.25 10.2 90 87 80 77 69 66 30
62.50 14.7 90 87 75 72 63 60 30
100 18.9 90 87 71 68 59 56 30
155 24.0 88 85 64 61 55 52 26
200 27.0 88 85 61 58 53 50 25
250 31.4 86 83 55 52 51 48 25
300 34.8 86 83 51 48 49 46 23
400 38.1 86 83 48 45 44 41 23

*Data for 250MHz above are for reference only

Mechanical and Thermal Properties

Bending Radius 8×OD (during installation);
  4×OD (fixed installed)
Temperature Range -20℃ ~ +60℃

Dimensions and Weight

Part No. Construction No. of elements×No. of cores in element×Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
  mm² mm mm mm kg/km
MLN-U/FTPCAT64P23 4×2×23AWG 0.23 0.63 7.5 61
