CAN BUS CABLES 120Ω

CAN BUS CABLES 120Ω IEC60092 STANDARD Offshore & Marine Cables

Application

These IEC60092 STANDARD Offshore & Marine cables are dedicated to the shipbuilding industry.

Standards

IEC 60092-350/352/353/360/370/376
IEC 60332-1-2
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

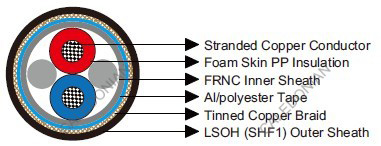

Construction

Conductors: Stranded tinned copper 21AWG.
Insulation: Foam skin PP.
Inner Sheath: Thermoplastic copolymer (FRNC).
Overall Screen1: Aluminium/polyester tape.
Overall Screen2: Tinned copper braid.
Outer Sheath: LSOH (SHF1).

Core Identification

Pair 1: Blue, Red
Pair 2: Brown, Green

Electrical Characteristics

Characteristic Impedance Ω 120 ± 18
Mutual Capacitance @1KHz nF/km 36
Insulation Resistance GΩ.km 5
    1 pair 2 pair
Attenuation @0.1MHz dB/100m 0.65 0.3
Attenuation @1MHz dB/100m 1.9 1.1
Attenuation @5MHz dB/100m 4.3 2.8
Attenuation @10MHz dB/100m 8.1 3.9
Attenuation @20MHz dB/100m 10.5 5.7

Mechanical and Thermal Properties

Bending Radius for Fixed Installations: 10×OD
Temperature Range: -30℃ ~ +80℃

Dimensions and Weight

Part No. Construction
No. of elements×No. of cores in element×Cross
section(mm²) 		Core Diameter mm Nominal Overall
Diameter mm 		Nominal Weight kg/km
MLN-09YSH(ST)CH-1×2×21A 1×2×21 AWG 2.4 7.7 79
MLN-09YSH(ST)CH-2×2×21A 2×2×21 AWG 2.2 8.4 90
