BS 6883&BS7917 STANDARD Offshore & Marine Cables
3.8/6.6kV, 6.35/11kV, 8.7/15kV HF-EPR Insulated, SW2/SW4 Sheathed Unarmoured Flame Retardant Power & Control Cables (Radial Field)

BS 6883&BS7917 STANDARD Offshore & Marine Cables

Application

These BS 6883&BS7917 STANDARD Offshore & Marine medium voltage elastomeric insulated cables are designed for fixed wiring in ships and on mobile offshore units, suitable for use in power and control applications.

Standards

 BS 6883
 IEC 60332-3A Flame retardant
 IEC 60754-1; IEC 60754-2 Corrosivity
 IEC 61034-2 Smoke density
 Cold bend and impact (-40°C) (on request)
 CSA C22.2 No. 38-95 (on request)

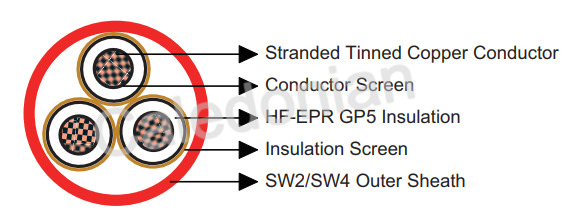

Construction

 Conductor: Tinned copper wire stranded circular cl. 2 BS 6360/IEC 60228.
 Conductor Screen: Semiconducting layer or tape.
 Insulation: HF-EPR GP5 according to BS 7655 1.2.
 Insulation Screen: Semiconducting layer or tape +Tinned copper tape.
 Outer Sheath: Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6.

Mechanical and Thermal Properties

Minimum Internal Bending Radius: 15×OD (single core); 20×OD (three core)
Temperature Range: -40℃ ~ +90℃

Dimensions and Weight

3.8/6.6kV

Construction
No. of cores×Cross section(mm²)
Nominal Insulation Thickness
mm
Nominal Outer Sheath Thickness
mm
Minimum Overall Diameter
mm
Maximum Overall Diameter
mm
Approx. Weight
kg/km
1×16 3.0 1.3 16.0 18.0 492
1×25 3.0 1.3 17.6 19.7 658
1×35 3.0 1.4 18.7 20.8 776
1×50 3.0 1.4 19.9 22.3 942
1×70 3.0 1.5 21.8 24.3 1229
1×95 3.0 1.6 23.7 26.3 1546
1×120 3.0 1.6 25.4 28.0 1890
1×150 3.0 1.7 27.0 29.8 2242
1×185 3.0 1.8 29.0 32.1 2713
1×240 3.0 1.9 31.7 35.0 3427
1×300 3.0 2.0 34.3 37.6 4177
1×400 3.0 2.1 37.6 41.1 5145
1×500 3.2 2.3 41.4 45.5 6408
1×630 3.2 2.4 45.1 49.2 8134
3×16 3.0 1.8 32.7 36.0 1482
3×25 3.0 2.0 36.5 39.9 2031
3×35 3.0 2.0 38.4 41.9 2359
3×50 3.0 2.2 41.3 45.3 2918
3×70 3.0 2.3 45.3 49.4 3788
3×95 3.0 2.5 49.3 53.9 4776
3×120 3.0 2.6 53.1 57.8 5868
3×150 3.0 2.7 56.5 61.4 6933
3×185 3.0 2.9 60.8 66.1 8401
3×240 3.0 3.1 66.6 72.2 10616

6.35/11kV

Construction
No. of cores×Cross section(mm²)
Nominal Insulation Thickness
mm
Nominal Outer Sheath Thickness
mm
Minimum Overall Diameter
mm
Maximum Overall Diameter
mm
Approx. Weight
kg/km
1×16 3.4 1.3 16.8 18.8 524
1×25 3.4 1.4 18.6 20.7 704
1×35 3.4 1.4 19.4 21.9 813
1×50 3.4 1.5 20.8 23.3 994
1×70 3.4 1.5 22.6 25.1 1272
1×95 3.4 1.6 24.4 27.1 1592
1×120 3.4 1.7 26.3 29.0 1956
1×150 3.4 1.7 27.8 30.6 2294
1×185 3.4 1.8 29.8 32.9 2769
1×240 3.4 1.9 32.5 35.8 3487
1×300 3.4 2.0 35.0 38.4 4242
1×400 3.4 2.1 38.4 41.9 5208
1×500 3.4 2.3 41.8 45.8 6442
1×630 3.4 2.4 45.5 49.6 8176
3×16 3.4 1.9 34.5 37.9 1601
3×25 3.4 2.0 38.2 41.6 2139
3×35 3.4 2.1 40.2 44.1 2497
3×50 3.4 2.2 43.0 47.0 3040
3×70 3.4 2.4 47.1 51.3 3949
3×95 3.4 2.5 51.0 55.6 4919
3×120 3.4 2.7 55.0 59.8 6055
3×150 3.4 2.8 58.4 63.3 7132
3×185 3.4 3.0 62.7 68.1 8613
3×240 3.4 3.2 68.5 74.1 10848

8.7/15kV

Construction
No. of cores×Cross section(mm²)
Nominal Insulation Thickness
mm
Nominal Outer Sheath Thickness
mm
Minimum Overall Diameter
mm
Maximum Overall Diameter
Mm
Approx. Weight
kg/km
1×25 4.5 1.5 20.9 23.4 808
1×35 4.5 1.5 21.7 24.3 921
1×50 4.5 1.5 22.9 25.5 1110
1×70 4.5 1.6 24.9 27.5 1396
1×95 4.5 1.7 26.7 29.5 1726
1×120 4.5 1.8 28.6 31.4 2099
1×150 4.5 1.8 30.1 33.3 2445
1×185 4.5 1.9 32.1 35.3 2929
1×240 4.5 2.0 34.8 38.2 3661
1×300 4.5 2.1 37.3 40.8 4429
1×400 4.5 2.2 40.7 44.6 5390
1×500 4.5 2.4 44.1 48.2 6638
1×630 4.5 2.5 47.8 52.0 8415
3×25 4.5 2.2 43.1 47.1 2458
3×35 4.5 2.3 45.2 49.2 2832
3×50 4.5 2.4 47.9 52.1 3395
3×70 4.5 2.6 52.1 56.7 4336
3×95 4.5 2.7 55.9 60.7 5334
3×120 4.5 2.9 59.9 64.9 6500
3×150 4.5 3.0 63.3 68.7 7602
3×185 4.5 3.2 67.6 73.2 9116
