 BS 6883&BS7917 STANDARD Offshore & Marine Cables
0.6/1kV HF-EPR Insulated, SW2/SW4 Sheathed Unarmoured Flame Retardant Power & Control Cables

BS 6883&BS7917 STANDARD Offshore & Marine Cables

Application

These BS 6883&BS7917 STANDARD Offshore Marine elastomeric insulated cables are designed for fixed wiring in ships and on mobile offshore units, suitable for use in power and control applications.

Standards

BS 6883
IEC 60332-3A Flame retardant
IEC 60754-1; IEC 60754-2 Corrosivity
IEC 61034-2 Smoke density
Cold bend and impact (-40°C) (on request)
CSA C22.2 No. 38-95 (on request)

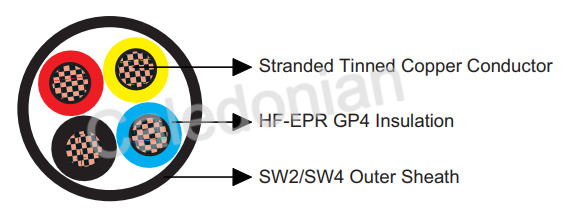

Construction

Conductor: Tinned copper wire stranded circular cl. 2 BS 6360/IEC 60228.
Insulation: HF-EPR GP4 according to BS 7655 1.2.
Sheath: Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6.

Mechanical and Thermal Properties

Minimum Internal Bending Radius: 6×OD (OD>25mm); 4×OD (OD ≤25mm)
Temperature Range: -40℃ ~ +90℃

Dimensions and Weight

Single core cables

Construction
No. of cores×Cross section(mm²)
Nominal Insulation Thickness
mm
Nominal Sheath Thickness
mm
Minimum Overall Diameter
mm
Maximum Overall Diameter
mm
Approx. Weight
kg/km
1×4 1.0 1.0 6.3 7.6 85
1×6 1.0 1.0 6.8 8.1 120
1×10 1.0 1.0 7.7 9.1 165
1×16 1.0 1.1 8.9 10.3 230
1×25 1.2 1.2 11.1 12.8 345
1×35 1.2 1.2 12.0 13.7 445
1×50 1.4 1.3 13.7 15.5 600
1×70 1.4 1.3 15.5 17.4 810
1×95 1.6 1.4 17.7 19.8 1100
1×120 1.6 1.5 19.6 22.0 1360
1×150 1.8 1.6 21.6 24.2 1650
1×185 2.0 1.7 24.0 26.6 2070
1×240 2.2 1.8 27.1 29.9 2670
1×300 2.4 1.9 30.0 33.2 3340

Multicore cables

Construction
No. of cores×Cross section(mm²)
Nominal Insulation Thickness
mm
Nominal Sheath Thickness
mm
Minimum Overall Diameter
mm
Maximum Overall Diameter
mm
Approx. Weight
kg/km
2×1 0.8 1.0 7.5 8.8 100
2×1.5 0.8 1.1 8.2 9.6 125
2×2.5 0.8 1.1 9.0 10.4 160
2×4 1.0 1.2 11.0 12.7 235
2×6 1.0 1.2 12.1 13.8 300
2×10 1.0 1.3 14.1 15.9 415
2×16 1.0 1.4 16.3 18.3 590
2×25 1.2 1.5 20.4 22.9 890
2×35 1.2 1.6 22.4 24.9 1150
2×50 1.4 1.7 25.7 28.4 1570
2×70 1.4 1.9 29.6 32.7 2140
2×95 1.6 2.1 34.1 37.4 2930
2×120 1.6 2.2 37.7 41.1 3600
3×1 0.8 1.1 8.2 9.5 110
3×1.5 0.8 1.1 8.7 10.1 150
3×2.5 0.8 1.1 9.6 11.0 190
3×4 1.0 1.2 11.7 13.4 280
3×6 1.0 1.2 12.9 14.7 370
3×10 1.0 1.3 15.0 17.0 505
3×16 1.0 1.4 17.4 19.4 750
3×25 1.2 1.6 22.0 24.6 1150
3×35 1.2 1.7 24.1 26.7 1490
3×50 1.4 1.8 27.7 30.5 2030
3×70 1.4 2.0 31.8 35.1 2790
3×95 1.6 2.2 36.7 40.1 3820
3×120 1.6 2.3 40.5 44.4 4710
3×150 1.8 2.5 44.9 49.0 5710
3×185 2.0 2.7 50.1 54.6 7180
3×240 2.2 2.9 56.7 61.5 9310
3×300 2.4 3.2 63.1 68.6 10860
4×1 0.8 1.1 8.9 10.3 140
4×1.5 0.8 1.1 9.5 10.9 175
4×2.5 0.8 1.1 10.5 12.1 225
4×4 1.0 1.2 12.9 14.6 340
4×6 1.0 1.3 14.4 16.2 465
4×10 1.0 1.4 16.7 18.7 640
4×16 1.0 1.5 19.4 21.8 960
4×25 1.2 1.7 24.5 27.1 1550
4×35 1.2 1.8 26.8 29.5 1920
4×50 1.4 1.9 30.8 34.0 2600
4×70 1.4 2.1 35.4 38.8 3570
4×95 1.6 2.3 40.8 44.7 4900
4×120 1.6 2.5 45.2 49.3 6070
4×150 1.8 2.7 50.1 54.7 7360
4×185 2.0 2.9 55.8 60.7 9260
4×240 2.2 3.2 63.4 68.9 12030
5×1.5 0.8 1.1 10.4 12.0 200
7×1.5 0.8 1.2 11.5 13.2 255
12×1.5 0.8 1.3 15.2 17.2 405
19×1.5 0.8 1.4 18.0 20.1 600
27×1.5 0.8 1.6 21.9 24.5 850
37×1.5 0.8 1.7 24.7 27.3 1120
5×2.5 0.8 1.2 11.7 13.3 270
7×2.5 0.8 1.2 12.7 14.4 335
12×2.5 0.8 1.4 17.1 19.1 550
19×2.5 0.8 1.5 20.2 22.7 830
