NEK606 Water Blocked Offshore & Marine Cables
Water Blocked S12 RU(c) 250 V

Applications

  • These S12 RU(c) 250 V NEK606 Water Blocked Offshore Marine cables are flame retardant, low smoke and halogen free, used for living, quarter and office areas.

Standards

  • IEC 60092-376 IEC 60092-351
    IEC 60092-359 IEC 60332-1
    IEC 60332-3-22 IEC 60754-1,2
    IEC 61034-1,2 NEK 606:2004
    VG 95218 part 29

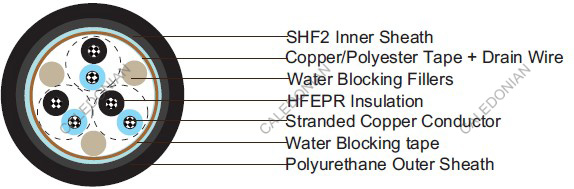

Water Blocked S12 RU(c) 250 V NEK606  Marine Cables

Construction

  • l Conductors: Circular tinned annealed stranded copper wire to IEC 60228 class 2.
    l Insulation: Halogen free EPR compound.
    l Twinning: Colour coded cores twisted together.
    l Filler: Water blocking fillers, if required.
    l Collective Shielding: Pairs/triples are layed up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
    l Water Blocking Elements: Water blocking tape and strings for providing longitudinal water tightness.
    l Inner Sheath: Halogen free thermosetting compound, SHF2, coloured grey (blue for intrinsically safe).
    l Outer Sheath: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low smoke standard.

Electrical Characteristics

  • Nominal Cross Section Area mm2 0.75 1.0 1.5
    Nominal Conductor Diameter mm 1.1 1.3 1.6
    Maximum Resistant@20˚C O/km 26.3 19.3 12.9
    Mutual Capacitance nF/km 80 90 100
    Nominal Inductance@1KHz MH/km 0.682 0.645 0.632
    Maximum L/R@1KHz μH/O 20 25 35
    Operating Voltage V 250 250 250

Mechanical and Thermal Properties

  • Bending Radius : 8×OD (during installation); 6×OD (fixed installed).

  • Temperature Range : -20˚C ~ +90˚C.

Dimensions and Weight

Construction
No. of elements×No. of cores in element×Cross section(mm2)
Nominal Insulation Thickness mm Nominal Inner Sheath Thickness mm Nominal Outer Sheath Thickness mm Nominal Overall Diameter mm Nominal Weight kg/km
2×2×0.75 0.6 1.1 1 11.4±2 168
4×2×0.75 0.6 1.1 1 13.5±2 226
7×2×0.75 0.6 1.3 1 15.6±2 315
8×2×0.75 0.6 1.3 1 16.7±2 357
12×2×0.75 0.6 1.4 1 19.6±2 488
16×2×0.75 0.6 1.5 1 21.7±2 625
19×2×0.75 0.6 1.5 1 22.7±2 698
24×2×0.75 0.6 1.7 1 26.1±2 893
32×2×0.75 0.6 2 1 28.7±2 1118
2×3×0.75 0.6 1.1 1 13.0±2 179
3×3×0.75 0.6 1.1 1 14.1±2 247
4×3×0.75 0.6 1.2 1 15.1±2 294
7×3×0.75 0.6 1.4 1 17.7±2 431
8×3×0.75 0.6 1.4 1 19.5±2 515
12×3×0.75 0.6 1.5 1 22.6±2 677
16×3×0.75 0.6 1.6 1 25.1±2 877
19×3×0.75 0.6 1.7 1 26.3±2 987
24×3×0.75 0.6 1.8 1 30.2±2 1271
2×2×1.0 0.6 1.1 1 11.9±2 200
4×2×1.0 0.6 1.1 1 14.3±2 268
7×2×1.0 0.6 1.3 1 16.7±2 389
8×2×1.0 0.6 1.3 1 17.7±2 431
12×2×1.0 0.6 1.5 1 20.9±2 593
16×2×1.0 0.6 1.6 1 23.1±2 767
19×2×1.0 0.6 1.7 1 24.5±2 872
24×2×1.0 0.6 1.8 1 27.9±2 1103
32×2×1.0 0.6 2.1 1 30.7±2 1381
3×3×1.0 0.6 1.1 1 14.9±2 294
4×3×1.0 0.6 1.3 1 16.0±2 352
7×3×1.0 0.6 1.5 1 18.9±2 525
12×3×1.0 0.6 1.6 1 24.1±2 835
16×3×1.0 0.6 1.6 1 26.8±2 1076
19×3×1.0 0.6 1.8 1 28.3±2 1234
24×3×1.0 0.6 2 1 32.4±2 1565
2×2×1.5 0.7 1.2 1 13.3±2 263
4×2×1.5 0.7 1.2 1 16.1±2 362
7×2×1.5 0.7 1.4 1 19.2±2 541
8×2×1.5 0.7 1.4 1 20.4±2 604
12×2×1.5 0.7 1.6 1 24.4±2 851
16×2×1.5 0.7 1.7 1 27.0±2 1097
19×2×1.5 0.7 1.8 1 28.4±2 1234
24×2×1.5 0.7 1.9 1 32.7±2 1580
32×2×1.5 0.7 2.2 1 35.9±2 1985
2×3×1.5 0.7 1.2 1 15.5±2 278
3×3×1.5 0.7 1.2 1 16.9±2 399
4×3×1.5 0.7 1.3 1 18.3±2 488
7×3×1.5 0.7 1.5 1 21.8±2 740
8×3×1.5 0.7 1.5 1 23.5±2 861
12×3×1.5 0.7 1.7 1 28.2±2 1197
16×3×1.5 0.7 1.8 1 31.4±2 1549
19×3×1.5 0.7 1.9 1 32.9±2 1759
24×3×1.5 0.7 2.1 1 38.2±2 2268
