NEK606 Water Blocked Offshore & Marine Cables
Water Blocked P19 or P19/P21 RFOU 12/20KV

Applications

  • These P19 or P19/P21 RFOU 12/20KV NEK606 Water Blocked Offshore Marine cables are partially water blocked, flame retardant, low smoke, halogen free and mud resistant, used for fixed installation for medium voltage power.

Standards

  • IEC 60092-353 IEC 60092-351
    IEC 60092-359 IEC 60332-1
    IEC 60332-3-22 IEC 60754-1,2
    IEC 61034-1,2 NEK 606:2004
    VG 95218 part 29

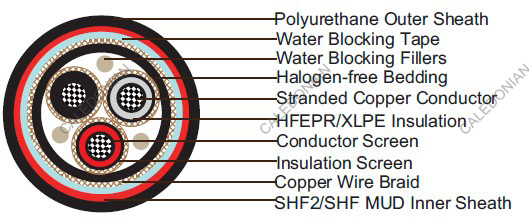

Water Blocked P19 or P19/P21 RFOU 12/20KV NEK606  Marine Cables

Construction

  • l Conductors: Circular tinned annealed stranded copper to IEC 60228 class 2.
    l Conductor Screen: Semi conducting material.
    l Insulation: Halogen-free EPR. XLPE can be offered as an option (for TFOU cable).
    l Insulation Screen: Semi conducting material and tinned copper wire braid.
    l Filler: Water blocking fillers, if required.
    l Bedding: Halogen free compound, PETP wrapping tape will be applied over the bedding, if required.
    l Armour: Tinned copper wire braid, PETP wrapping tape will be applied over the braiding, if required.
    l Water Blocking Elements: Water blocking tape and strings for providing longitudinal water tightness.
    l Inner Sheath: Halogen free thermosetting compound, SHF2 (for TYPE P19), or halogen free mud resistant thermosetting compound, SHF MUD (for TYPE P19/P21), coloured red.
    l Outer Sheath: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low smoke standard.

Optional

  • P20 or P20/P22 RFOU/TFOU 18/30(36) kV.

Electrical Characteristics

  • Nominal Cross Section Area mm2 16 25 35 50 70 95
    Nominal Conductor Diameter mm 5.2 6.5 7.4 8.7 10.3 12.2
    Maximum DC Resistant@20˚C O/km 1.16 0.734 0.529 0.391 0.27 0.195
    Continuous Current Rating@45˚C1 Core A 96 127 157 196 242 293
    Continuous Current Rating@45˚C3 Core A 67 89 110 137 169 205
    Short Circuit Current 1s A 2290 3580 5010 7150 10020 13590
    Operating Voltage KV 12/20 12/20 12/20 12/20 12/20 12/20
  • Nominal Cross Section Area mm2 120 150 185 240 300
    Nominal Conductor Diameter mm 13.8 15.1 17.0 19.6 21.9
    Maximum DC Resistant@20˚C O/km 0.154 0.126 0.1 0.0762 0.0607
    Continuous Current Rating@45˚C1 Core A 339 389 444 522 601
    Continuous Current Rating@45˚C3 Core A 237 272 311 365 421
    Short Circuit Current 1s A 17170 21460 26470 34340 42930
    Operating Voltage KV 12/20 12/20 12/20 12/20 12/20

Ambient Temperature Correction Factors

  • Ambient Temperature Correction Factors 35 40 45 50 55 60 65 70 75 80
    Rating Factor 1.1 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47

Mechanical and Thermal Properties

  • Bending Radius :15×OD (during installation); 9×OD (fixed installed).

  • Temperature Range : -20˚C ~ +90˚C.

Dimensions and Weight

Construction No. of cores×Cross section (mm2) Nominal Insulation Thickness mm Nominal Bedding Thickness mm Nominal Inner Sheath Thickness mm Nominal Outer Sheath Thickness mm
Nominal Overall Diameter mm Nominal Weight kg/km
1×16 5.5 1.4 1.2 1 30.0±2 1260
1×25 5.5 1.5 1.2 1.2 34.0±2 1607
1×35 5.5 1.8 1.3 1.2 34.7±2 1675
1×50 5.5 1.8 1.4 1.2 36.2±2 1885
1×70 5.5 1.9 1.4 1.2 37.0±2 2174
1×95 5.5 2 1.5 1.4 39.8±2 2594
1×120 5.5 2 1.5 1.4 41.6±2 2951
1×150 5.5 2.1 1.6 1.4 43.5±2 3407
1×185 5.5 2.2 1.6 1.4 45.7±2 3953
1×240 5.5 2.3 1.7 1.6 49.0±2 4736
1×300 5.5 2.4 1.8 1.6 51.7±2 5581
3×16 5.5 1.8 2 1 57.1±2 5198
3×25 5.5 1.9 2 1.2 64.6±2 5990
3×35 5.5 2.9 2.1 1.2 65.0±2 6290
3×50 5.5 3 2.2 1.2 67.8±2 7077
3×70 5.5 3.1 2.3 1.2 71.5±2 8180
3×95 5.5 3.3 2.4 1.4 75.8±2 9608
3×120 5.5 3.4 2.5 1.4 79.8±2 11109
3×150 5.5 3.6 2.6 1.4 84.7±2 12752
3×185 5.5 3.8 2.7 1.4 92.3±2 12878
3×240 5.5 4 2.9 1.6 99.3±2 15461
3×300 5.5 4.2 3 1.6 105.1±2 18050
