NEK606 Water Blocked Offshore & Marine Cables
Water Blocked P3 or P3/P10 RFOU/TFOU 6/10KV

Applications

  • These P3 or P3/P10 RFOU/TFOU 6/10KV NEK606 Water Blocked Offshore Marine cables are partially water blocked, flame retardant, low smoke, halogen free and mud resistant, used for fixed installation for medium voltage power.

Standards

  • IEC 60092-353 IEC 60092-351
    IEC 60092-359 IEC 60332-1
    IEC 60332-3-22 IEC 60754-1,2
    IEC 61034-1,2 NEK 606:2004
    VG 95218 part 29

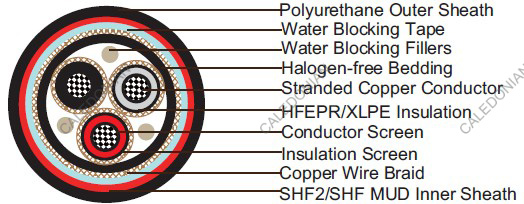

Water Blocked P3 or P3/P10 RFOU/TFOU 6/10KV NEK606  Marine Cables

Construction

  • l Conductors: Circular tinned annealed stranded copper to IEC 60228 class 2.
    l Conductor Screen: Semi conducting material.
    l Insulation: Halogen-free EPR. XLPE can be offered as an option (for TFOU cable).
    l Insulation Screen: Semi conducting material and tinned copper wire braid.
    l Filler: Water blocking fillers, if required.
    l Bedding: Halogen free compound, PETP wrapping tape will be applied over the bedding, if required.
    l Armour: Tinned copper wire braid, PETP wrapping tape will be applied over the braiding, if required.
    l Water Blocking Elements: Water blocking tape and strings for providing longitudinal water tightness.
    l Inner Sheath: Halogen free thermosetting compound, SHF2 (for TYPE P3), or halogen free mud resistant thermosetting compound, SHF MUD (for TYPE P3/P10), coloured red.
    l Outer Sheath: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low smoke standard.

Electrical Characteristics

  • Nominal Cross Section Area mm2 16 25 35 50 70 95 120
    Nominal Conductor Diameter mm 5.2 6.5 7.4 8.7 10.3 12.2 13.8
    Maximum DC Resistant@20˚C O/km 1.16 0.734 0.529 0.391 0.27 0.195 0.154
    Continuous Current Rating@45˚C1 Core A 96 127 157 196 242 293 339
    Continuous Current Rating@45˚C3 Core A 67 89 110 137 169 205 237
    Short Circuit Current 1s A 2290 3580 5010 7150 10020 13590 17170
    Operating Voltage KV 6/10 6/10 6/10 6/10 6/10 6/10 6/10
    Nominal Cross Section Area mm2 150 185 240 300 400 500 630
    Nominal Conductor Diameter mm 15.1 17.0 19.6 21.9 24.5 27.5 32.3
    Maximum DC Resistant@20˚C O/km 0.126 0.1 0.0762 0.0607 0.0475 0.0369 0.0286
    Continuous Current Rating@45˚C1 Core A 389 444 522 601 690 780 890
    Continuous Current Rating@45˚C3 Core A 272 311 365 421 483 546 623
    Short Circuit Current 1s A 21460 26470 34340 42930 57230 71540 90140
    Operating Voltage KV 6/10 6/10 6/10 6/10 6/10 6/10 6/10

Ambient Temperature Correction Factors

  • Ambient Temperature Correction Factors 35 40 45 50 55 60 65 70 75 80
    Rating Factor 1.1 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47

Mechanical and Thermal Properties

  • Bending Radius :15×OD (during installation); 9×OD (fixed installed).

  • Temperature Range : -20˚C ~ +90˚C.

Dimensions and Weight

Construction No. of cores×Cross section(mm2) Nominal Insulation Thickness mm Nominal Bedding Thickness mm Nominal Inner Sheath Thickness mm Nominal Outer Sheath Thickness mm
Nominal Overall Diameter mm Nominal Weight kg/km
1×16 3.4 1.5 1.1 1 26.0±2 945
1×25 3.4 1.5 1.2 1.2 28.4±2 1197
1×35 3.4 1.6 1.2 1.2 29.3±2 1328
1×50 3.4 1.6 1.2 1.2 30.7±2 1533
1×70 3.4 1.7 1.3 1.2 32.4±2 1796
1×95 3.4 1.8 1.3 1.4 34.8±2 2163
1×120 3.4 1.8 1.4 1.4 36.6±2 2499
1×150 3.4 1.9 1.4 1.4 38.1±2 2835
1×185 3.4 2 1.5 1.4 40.6±2 3386
1×240 3.4 2.1 1.6 1.6 44.2±2 4190
1×300 3.4 2.2 1.6 1.6 46.9±2 4998
1×400 3.4 2.3 1.7 1.6 48.7±2 6195
1×500 3.4 2.4 1.8 1.6 52.7±2 7718
1×630 3.4 2.6 1.9 1.6 57.7±2 9188
3×16 3.4 2.3 1.7 1 48.0±2 3465
3×25 3.4 2.4 1.8 1.2 52.5±2 4100
3×35 3.4 2.5 1.8 1.2 54.6±2 4578
3×50 3.4 2.6 1.9 1.2 57.5±2 5444
3×70 3.4 2.7 2 1.2 61.3±2 6431
3×95 3.4 2.9 2.1 1.4 66.3±2 7875
3×120 3.4 3 2.2 1.4 70.4±2 9214
3×150 3.4 3.2 2.3 1.4 74.1±2 10747
3×185 3.4 3.4 2.4 1.4 76.8±2 11865
3×240 3.4 3.6 2.6 1.6 82.7±2 13965
3×300 3.4 3.8 2.7 1.6 88.2±2 17115
