NEK606 Water Blocked Offshore & Marine Cables
Water Blocked P30 RFOU-HCF / TFOU-HCF 6/10(12) kV

Applications

  • These P30 RFOU-HCF / TFOU-HCF 6/10(12) kV NEK606 Water Blocked Offshore & Marine cables are partially water blocked, fire resistant, flame retardant, low smoke and halogen free, used for emergency control, power and lighting systems that need to be operational during a 1100°C hydrocarbon fire.

Standards

IEC 60092-354 IEC 60092-351
IEC 60092-359 IEC 60332-1
IEC 60331-21 IEC 60332-3-22
IEC 60754-1,2 IEC 61034-1,2
NEK 606:2004 VG 95218 part 29?

water blocked P30 RFOU-HCF / TFOU-HCF 6/10(12) kV NEK606  Marine Cables

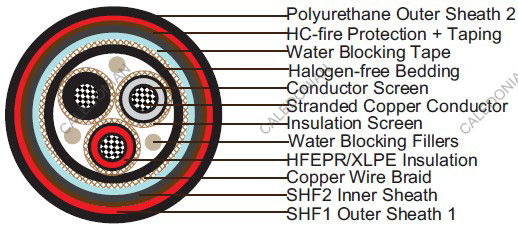

Construction

  • l Conductors: Circular tinned annealed stranded copper to IEC 60228 class 2.
    l Conductor Screen: Semi conducting material.
    l Insulation: Halogen-free EPR. XLPE can be offered as an option.
    l Insulation Screen: Semi conducting material and tinned copper wire braid.
    l Filler: Water blocking fillers, if required.
    l Bedding: Halogen free compound, PETP wrapping tape will be applied over the bedding, if required.
    l Armour: Tinned copper wire braid, PETP wrapping tape will be applied over the braiding, if required.
    l Water Blocking Elements: Water blocking tape and strings for providing longitudinal water tightness.
    l Inner Sheath: Halogen free thermosetting compound, SHF2, coloured red.
    l HC-fire protection: Extruded thermoplastic fire protection compound.
    l Taping: Lapped glass fibre tape. l??? Outer Sheath 1: Flame retardant halogen-free thermoplastic compound, SHF1, coloured red.
    l Outer Sheath 2: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low smoke standard.

Optional

  • P31 RFOU-HCF / TFOU-HCF 8.7/15kV

  • P32 RFOU-HCF / TFOU-HCF 12/20(24) kV

  • P33 RFOU-HCF / TFOU-HCF 18/30(36) kV

Electrical Characteristics

  • Nominal Cross Section Area mm2 70 95 120 150 185 240 300
    Nominal Conductor Diameter mm 10.3 12.2 13.8 15.1 17.0 19.6 21.9
    Maximum DC Resistant@20˚C O/km 0.27 0.195 0.154 0.126 0.1 0.0762 0.0607
    Continuous Current Rating@45˚C1 Core A 242 293 339 389 444 522 601
    Continuous Current Rating@45˚C3 Core A 169 205 237 272 311 365 421
    Short Circuit Current 1s A 10020 13590 17170 21460 26470 34340 42930
    Operating Voltage KV 6/10 6/10 6/10 6/10 6/10 6/10 6/10

Ambient Temperature Correction Factors

  • Ambient Temperature Correction Factors 35 40 45 50 55 60 65 70 75 80
    Rating Factor 1.1 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47

Mechanical and Thermal Properties

  • Bending Radius : 25×OD (during installation); 12×OD (fixed installed).

  • Temperature Range : -20˚C ~ +90˚C.

Dimensions and Weight

Construction No. of cores×Cross section (mm2) Nominal Insulation Thickness mm Nominal Diameter Over Bedding mm Nominal Diameter Over Inner Sheath mm Nominal Overall Diameter mm Nominal Weight kg/km
1×70 3.4 23.5 30 64.4±2 5481
1×95 3.4 25.5 32 67.3±2 6195
1×120 3.4 27.5 34 69.3±2 6657
1×150 3.4 28.5 35 70.3±2 7004
1×185 3.4 30.5 36.5 71.8±2 7686
1×240 3.4 33 39 75.2±2 8663
1×300 3.4 35 41.5 77.7±2 9744
3×50 3.4 47 55 91.4±2 11519
3×95 3.4 54 62.5 99.8±2 14942
3×150 3.4 60 70.5 108.8±2 18270
