NEK606 Water Blocked Offshore & Marine Cables
Water Blocked P17 BU 0.6/1 kV

Applications

  • These NEK606 Water Blocked Offshore & Marine cables are partially water blocked, fire resistant, flame retardant, low smoke and halogen free, used for control, power and lighting systems.

Standards

  • IEC 60092-353 IEC 60092-351
    IEC 60092-359 IEC 60332-1
    IEC 60332-3-22 IEC 60754-1,2
    IEC 61034-1,2 NEK 606:2004
    VG 95218 part 29

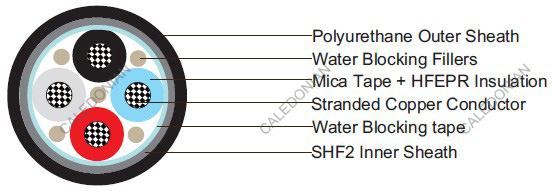

Water Blocked P17 BU 0.6/1 kV NEK606 Marine Cables

Construction

  • l Conductors: Tinned annealed stranded copper to IEC 60228 class 2.
    l Filler: Water blocking fillers, if required.
    l Insulation: Mica tape + Halogen free EPR.
    l Water Blocking Elements: Water blocking tape and strings for providing longitudinal water tightness.
    l Inner Sheath: Halogen free thermosetting compound, SHF2, coloured black.
    l Outer Sheath: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low smoke standard.

Electrical Characteristics

  • Nominal Cross Section Area mm2 1.5 2.5 4 6 10 16 25 35
    Nominal Conductor Diameter mm 1.6 2.1 2.6 3.2 4 5.1 6.5 7.4
    Maximum DC Resistant@20˚C O/km 12.2 7.56 4.7 3.11 1.84 1.16 0.734 0.529
    Continuous Current Rating@45˚C1 Core A 23 30 40 52 72 96 127 157
    Continuous Current Rating@45˚C2 Core A 20 26 34 44 61 82 108 133
    Continuous Current Rating@45˚C3&4 Core A 16 21 28 36 50 67 89 110
    Short Circuit Current 1s A 210 360 570 860 1430 2290 3580 5010
    Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1
    Nominal Cross Section Area mm2 50 70 95 120 150 185 240 300
    Nominal Conductor Diameter mm 8.7 10.3 12.2 13.8 15.1 17.0 19.6 21.9
    Maximum DC Resistant@20˚C O/km 0.391 0.27 0.195 0.154 0.126 0.1 0.0762 0.0607
    Continuous Current Rating@45˚C1 Core A 196 242 293 339 389 444 522 601
    Continuous Current Rating@45˚C2 Core A 167 206 249 288 331 444 444 511
    Continuous Current Rating@45˚C3&4 Core A 137 169 205 237 272 311 365 421
    Short Circuit Current 1s A 7150 10020 13590 17170 21460 26470 34340 42930
    Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1

  • Note: For more than 4-cores, the current ratings may be calculated from the following formula (IN=I1/ 3v N ), I1= Current rating for 1-core, N = Number of cores.

Ambient Temperature Correction Factors

  • Ambient Temperature Correction Factors 35 40 45 50 55 60 65 70 75 80
    Rating Factor 1.1 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47

Mechanical and Thermal Properties

  • Bending Radius : 8×OD (during installation); 6×OD (fixed installed).

  • Temperature Range : -20˚C ~ +90˚C.

Dimensions and Weight

Construction No. of cores×Cross section
(mm2)		 Nominal Insulation Thickness
mm		 Nominal Inner Sheath Thickness
mm		 Nominal Outer Sheath Thickness
mm		 Nominal Overall Diameter
mm		 Nominal Weight
kg/km
1×1.5 1 1 1 8.4±2 68
1×2.5 1 1 1 8.8±2 79
1×4 1 1 1 9.4±2 100
1×6 1 1 1 9.9±2 126
1×10 1 1.1 1 10.8±2 179
1×16 1 1.1 1 12.2±2 252
1×25 1.2 1.2 1.2 14.4±2 378
1x35 1.2 1.2 1.2 15.5:t2 478
1x50 1.4 1.3 1.2 17.1:t2 630
1x70 1.4 1.4 1.2 19.0:t2 845
1x95 1.6 1.5 1.4 21.8:t2 1150
1x120 1.6 1.5 1.4 23.4:t2 1412
1x150 1.8 1.6 1.4 25.5:t2 1717
1x185 2 1.7 1.4 28.0:t2 2174
1x240 2.2 1.8 1.6 31.6:t2 2788
1x300 2.4 1.9 1.6 34.3:t2 3502
2x1.5 1 1.1 1 12.3:t2 163
2x2.5 1 1.2 1 13.0:t2 200
2x4 1 1.2 1 14.3:t2 263
2x6 1 1.3 1 15.4:t2 326
2x10 1 1.3 1 17.6:t2 467
2x16 1 1.4 1 20.2:t2 667
2x25 1.2 1.6 1.2 24.4:t2 1019
2x35 1.2 1.7 1.2 26.4:t2 1276
2x50 1.4 1.8 1.2 29.8:t2 1696
2x70 1.4 1.9 1.2 35.0:t2 2452
2x95 1.6 2.1 1.4 40.4:t2 3313
2x120 1.6 2.3 1.4 44.0:t2 4069
2x150 1.8 2.4 1.4 48.2:t2 4961
2x185 2 2.6 1.4 53.0:t2 6137
2x240 2.2 2.8 1.6 60.0:t2 7949
2x300 2.4 3.1 1.6 66.2:t2 9865
3x1.5 1 1.2 1 12.9:t2 189
3x2.5 1 1.2 1 13.9:t2 242
3x4 1 1.2 1 15.1:t2 310
3x6 1 1.3 1 16.2:t2 394
3x10 1 1.4 1 18.5:t2 578
3x16 1 1.5 1 21.3:t2 835
3x25 1.2 1.6 1.2 25.9:t2 1281
3x35 1.2 1.7 1.2 28.0:t2 1622
3x50 1.4 1.9 1.2 31.9:t2 2179
3x70 1.4 2 1.2 35.6:t2 2914
3x95 1.6 2.2 1.4 41.3:t2 3990
3x120 1.6 2.4 1.4 44.8:t2 4919
3x150 1.8 2.5 1.4 49.1:t2 5969
3x185 2 2.7 1.4 54.6:t2 7576
3x 240 2. 2 3 1.6 61.2:t2 9786
3×300 2.4 3.2 1.6 70.8±2 12894
4×1.5 1 1.2 1 14.1±2 236
4×2.5 1 1.2 1 15.0±2 289
4×4 1 1.3 1 16.5±2 383
4×6 1 1.4 1 17.8±2 515
4×10 1 1.4 1 20.4±2 730
4×16 1 1.5 1 23.5±2 1055
4×25 1.2 1.7 1.2 28.5±2 1628
4×35 1.2 1.8 1.2 30.9±2 2069
4×50 1.4 2 1.2 35.2±2 2777
4×70 1.4 2.2 1.2 39.3±2 3722
4×95 1.6 2.4 1.4 45.6±2 5093
4×120 1.6 2.6 1.4 49.3±2 6263
4×150 1.8 2.8 1.4 57.4±2 8421
4×185 2 3 1.4 63.1±2 10427
4×240 2.2 3.3 1.6 71.6±2 13566
4×300 2.4 3.5 1.6 78.7±2 16795
5×1.5 1 1.3 1 16.3±2 278
6×1.5 1 1.3 1 17.6±2 320
7×1.5 1 1.3 1 17.6±2 336
8×1.5 1 1.4 1 20.4±2 446
9×1.5 1 1.5 1 21.9±2 462
10×1.5 1 1.5 1 22.2±2 520
12×1.5 1 1.5 1 22.9±2 557
14×1.5 1 1.6 1 23.9±2 662
16×1.5 1 1.6 1 25.3±2 725
19×1.5 1 1.6 1 26.6±2 830
20×1.5 1 1.7 1 28.1±2 924
23×1.5 1 1.8 1 30.4±2 1082
24×1.5 1 1.8 1 31.2±2 1087
27×1.5 1 1.8 1 31.9±2 1134
30×1.5 1 1.9 1 33.1±2 1313
33×1.5 1 1.9 1 34.3±2 1402
37×1.5 1 2 1 35.8±2 1517
44×1.5 1 2.2 1 40.4±2 1853
5×2.5 1 1.3 1 16.5±2 357
6×2.5 1 1.4 1 19.0±2 415
7×2.5 1 1.4 1 19.0±2 441
8×2.5 1 1.5 1 22.0±2 562
9×2.5 1 1.5 1 23.5±2 588
10×2.5 1 1.5 1 23.8±2 651
12×2.5 1 1.6 1 24.7±2 714
14×2.5 1 1.6 1 25.9±2 851
16×2.5 1 1.7 1 27.4±2 940
19×2.5 1 1.7 1 28.8±2 1050
20×2.5 1 1.8 1 30.4±2 1197
23×2.5 1 1.9 1 32.9±2 1391
24×2.5 1 1.9 1 33.8±2 1407
27×2.5 1 1.9 1 34.5±2 1465
30×2.5 1 2 1 35.9±2 1701
33×2.5 1 2 1 37.2±2 1822
37×2.5 1 2.1 1 38.8±2 1958
44×2.5 1 2.3 1 43.8±2 2410
