  HomeProuductsNEK606 Water Blocked Offshore & Marine Cables

NEK606 Water Blocked Offshore & Marine Cables
Water Blocked P34 BFOU-HCF 0.6/1 kV

Applications

These P34 BFOU-HCF 0.6/1 kV NEK606 Water Blocked Offshore & Marine cables are partially water blocked, fire resistant, flame retardant, low smoke and halogen free, used for emergency control, power and lighting systems that need to be operational during a 1100°C hydrocarbon fire.

Standards

  • IEC 60092-353 IEC 60092-351
    IEC 60092-359 IEC 60332-1
    IEC 60332-3-22 IEC 60754-1,2
    IEC 61034-1,2 NEK 606:2004
    VG 95218 part 29

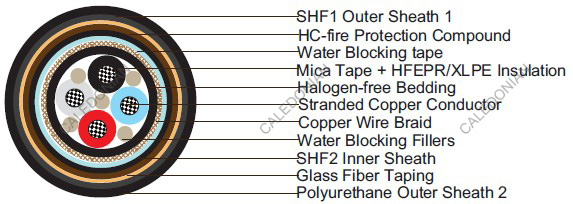

Water Blocked P34 BFOU-HCF 0.6/1 kV NEK606 Marine cables

Construction

  • l Conductors: Tinned annealed stranded compacted copper to IEC 60228 class 2.
    l Insulation: Mica tape + Halogen free EPR/XLPE.
    l Filler: Water blocking fillers, if required.
    l Bedding: Halogen free compound, PETP wrapping tape will be applied over the bedding, if required.
    l Armour: Tinned copper wire braid, PETP wrapping tape will be applied over the braiding, if required.
    l Water Blocking Elements: Water blocking tape and strings for providing longitudinal water tightness.
    l Inner Sheath: Halogen free thermosetting compound, SHF2.
    l HC-fire protection: Extruded thermoplastic fire protection compound.
    l Taping: Lapped glass fibre tape.
    l Outer Sheath 1: Flame retardant halogen-free thermoplastic compound, SHF1, coloured black. lOuter Sheath 2: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low smoke standard.

Electrical Characteristics

  • Nominal Cross Section Area mm2 1.5 2.5 4 6 16 35
    Nominal Conductor Diameter mm 1.6 2.1 2.6 3.2 5.1 7.4
    Maximum DC Resistant@20˚C O/km 12.2 7.56 4.7 3.11 1.16 0.529
    Continuous Current Rating@45˚C1 Core A 23 30 40 52 96 157
    Continuous Current Rating@45˚C2 Core A 20 26 34 44 82 133
    Continuous Current Rating@45˚C3&4 Core A 16 21 28 36 67 110
    Short Circuit Current 1s A 210 360 570 860 2290 5010
    Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1
    Nominal Cross Section Area mm2 50 70 95 120 150 185 240 300
    Nominal Conductor Diameter mm 8.7 10.3 12.2 13.8 15.1 17.0 19.6 21.9
    Maximum DC Resistant@20˚C O/km 0.391 0.27 0.195 0.154 0.126 0.1 0.0762 0.0607
    Continuous Current Rating@45˚C1 Core A 196 242 293 339 389 444 522 601
    Continuous Current Rating@45˚C2 Core A 167 206 249 288 331 444 444 511
    Continuous Current Rating@45˚C3&4 Core A 137 169 205 237 272 311 365 421
    Short Circuit Current 1s A 7150 10020 13590 17170 21460 26470 34340 42930
    Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1
  • Note: For more than 4-cores, the current ratings may be calculated from the following formula (IN=I1/ 3v N ), I1= Current rating for 1-core, N = Number of cores.

Ambient Temperature Correction Factors

  • Ambient Temperature Correction Factors 35 40 45 50 55 60 65 70 75 80
    Rating Factor 1.1 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47

Mechanical and Thermal Properties

  • Bending Radius :20×OD (during installation); 12×OD (fixed installed).
  • Temperature Range : -20˚C ~ +90˚C.

Dimensions and Weight

Construction No. of cores×Crosssection
(mm2)		 Nominal Insulation Thickness
mm		 Nominal Diameter Over Bedding
mm		 Nominal Diameter Over Sheath1
mm		 Nominal Overall
Diameter
mm		 Nominal Weight
kg/km
1×50 1.4 15 18.5 47.9±2 3045
1×70 1.4 16.5 20.5 49.9±2 3465
1×95 1.6 18.5 23 53.3±2 3990
1×120 1.6 20.5 25 55.3±2 4473
1×150 1.8 23 27 57.3±2 4988
1×185 2 25 29.5 60.3±2 5649
1×240 2.2 28 32.5 69.2±2 7403
1×300 2.4 30.5 35.5 71.2±2 8400
2×1.5 1 10 13 42.5±2 1985
2×2.5 1 11 14.5 44.0±2 2184
3×1.5 1 10.5 14 44.0±2 2247
3×2.5 1 11.5 15 44.5±2 2310
3×4 1 13 16.5 45.0±2 2520
3×6 1 14 18 47.0±2 2730
3×16 1 18.5 23 52.4±2 3675
3×35 1.2 25 29.5 59.9±2 5082
3×70 1.4 33 39 74.4±2 8558
3×120 1.6 41 48 83.9±2 11865
3×150 1.8 46 54.5 91.3±2 13965
4×2.5 1 12.5 16.5 46.8±2 2415
4×6 1 15.5 19.5 50.3±2 3014
4×16 1 20.5 25 55.5±2 4022
7×1.5 1 14 17.5 46.5±2 2678
12×1.5 1 18.5 22.5 52.0±2 3297
27×1.5 1 26.5 31 66.5±2 5324
7×2.5 1 15 19 48.0±2 2898
12×2.5 1 20.5 24.5 54.0±2 3675
Note: For XLPE insulated cable, a thinner insulation thickness is applied.
