Reeling Fibre Optic cable

Applications

These cables are designed for the optical transmission of data and signals in tough operational conditions, such as on materials handling equipment (no reeling) or alongside conveyor belts etc., withstanding to high mechanical loads; suitable for outdoor and indoor use, also for hazardous environment.

Standards

DIN VDE 0888

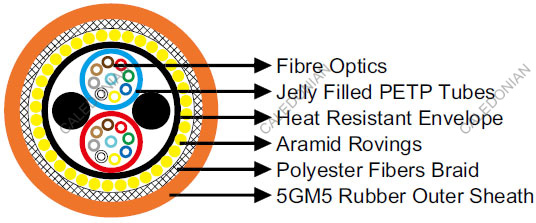

Construction

Reeling Fibre Optic cable
Fiber Optics Type: 9/125, 50/125 or 62.5/125.
Plastic Tubes PETP tubes filled with jelly.
Envelope Heat resistant compound.
Stress Relief Aramid rovings.
Braid Polyester fibers.
Sheath Rubber type 5GM5.

Dimensions and Weight

Number of Fibers & Fibre Type Minimum Overall Diameter Maximum Overall Diameter Nominal Weight
  mm mm kg/km
2×6G50/125 11.0 13.0 200
2×6G62.5/125 11.0 13.0 200
2×6E9/125 11.0 13.0 200
2×9G50/125 11.0 13.0 200
2×9G62.5/125 11.0 13.0 200
2×9E9/125 11.0 13.0 200
2×12G50/125 11.0 13.0 200
2×12G62.5/125 11.0 13.0 200
2×12E9/125 11.0 13.0 200
2×18G50/125 11.0 13.0 200
2×18G62.5/125 11.0 13.0 200
2×18E9/125 11.0 13.0 200
