NTMTWOEU 0.6/1kV Mine Hoist Cables

Applications

These cables are used as suspended cable for intrinsically safe control of user-operated mine hoists (lifts) with telephonic connection in underground mines.

Standards

  • VDE 0250 Part 813

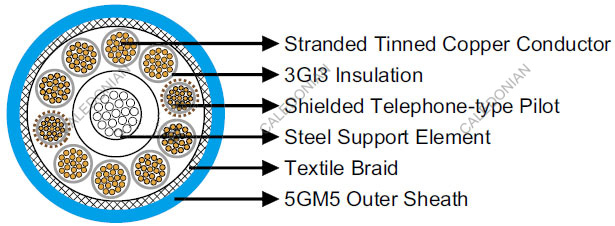

Construction

NTMTWOEU 0.6/1kV Mine Hoist Cables
Conductors Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295.
Insulation EPR type 3GI3.
Support Element Central steel support element.
Anti-torsion Braid Textile braid.
Outer Sheath PCP rubber type 5GM5.

Dimensions and Weight

Number of Cores×Nominal Cross Section Minimum Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm^2 mm mm kg/km
8x2.5ST+2x1FM(C) 21.7 23.7 800
8x2.5ST+10x (2x1FM)C 34.0 37.5 1450
14x2.5ST+6x1FM(C) 27.0 31.0 1200
18x2.5ST+6x1FM(C) 38.0 42.0 1800
19x1.5(C)ST+6x (2x1FM)C 35.1 38.1 2145
