NSSHCGEOEU 0.6/1kV Coal Cutter Cable (High Tensile Stress)

Applications

These cables are used for the connection of mobile machines under extremely high mechanical loads, predominantly in mining situations, e.g. for coal-cutting machines, also can be operated via guide pulleys (cable cars) or used as a reeling cable (LHD), suitable for extreme bending loads, high tensile stress, and impact and crushing loads.

Standards

VDE 0250 Part 812

Construction

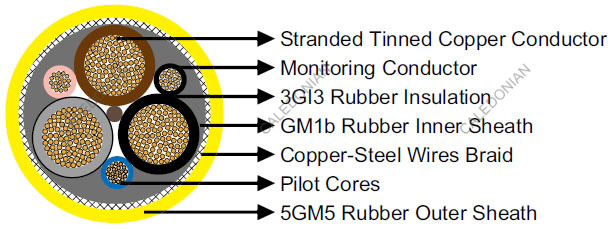

NSSHCGEOEU 0.6/1kV Coal Cutter Cable (High Tensile Stress)
Conductors Flexible stranded tinned copper conductor.
Insulation Heat resistant 3GI3 rubber based on EPR.
Outer Conductor Layer Easy strippable outer conductive layer.
Pilot Cores Copper and steel conductor capable of expansion and compression with 3GI3 EPR rubber insulation.
Monitoring Conductor Copper and steel conductor capable of expansion and compression covert with semi conductive rubber compound.
Inner Sheath Rubber type GM1b.
Armour/Earth Conductor Concentric earth conductor as tensile-stress-resistant braided armour of combined copper-steel wires.
Outer Sheath Rubber type 5GM5, abrasion and tear resistant, oil resistant and flame retardant.

Dimensions and Weight

Number of Cores×Nominal Cross Section Minimum Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm^2 mm mm kg/km
3×16/16KON+2ST+UEL 38.5 41.5 2430
3×25/16KON+2ST+UEL 41.0 44.5 3050
3×35/16KON+2ST+UEL 44.5 48.0 3620
3×50/25KON+2ST+UEL 50.0 54.0 4810
3×70/35KON+2ST+UEL 54.5 58.5 5890
3×95/50KON+2ST+UEL 62.5 66.5 7800
3×35/16KON+3ST+3UEL 44.5 48.0 3860
3×50/25KON+3ST+3UEL 50.0 54.0 5050
3×70/35KON+3ST+3UEL 54.5 58.5 6000
3×95/50KON+3ST+3UEL 62.5 66.5 8050
3×120/70KON+3ST+3UEL 67.5 72.0 9380
3×150/70KON+3ST+3UEL 74.5 79.0 11120
